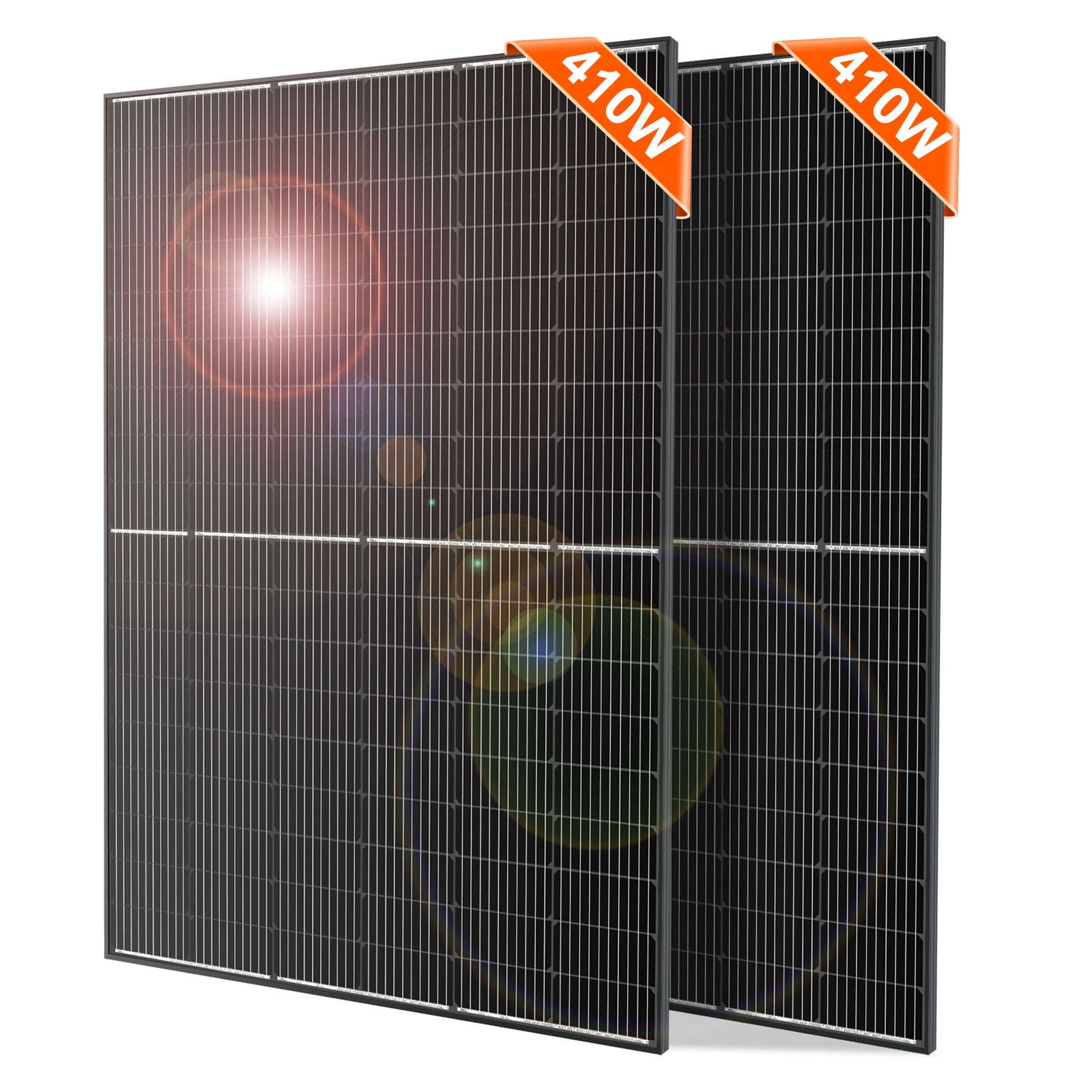

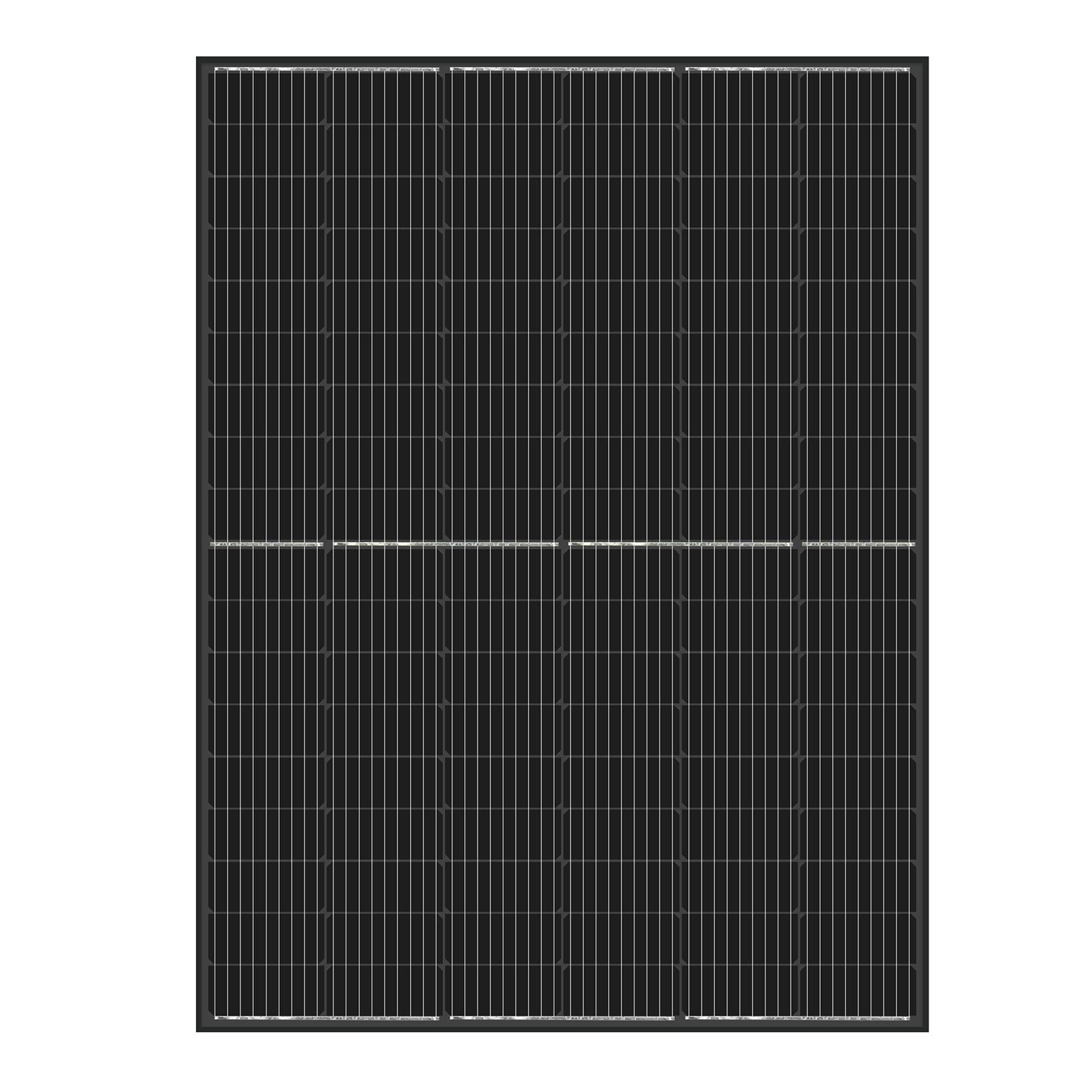

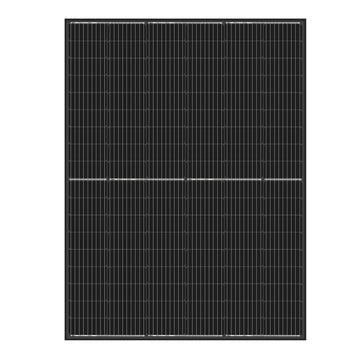

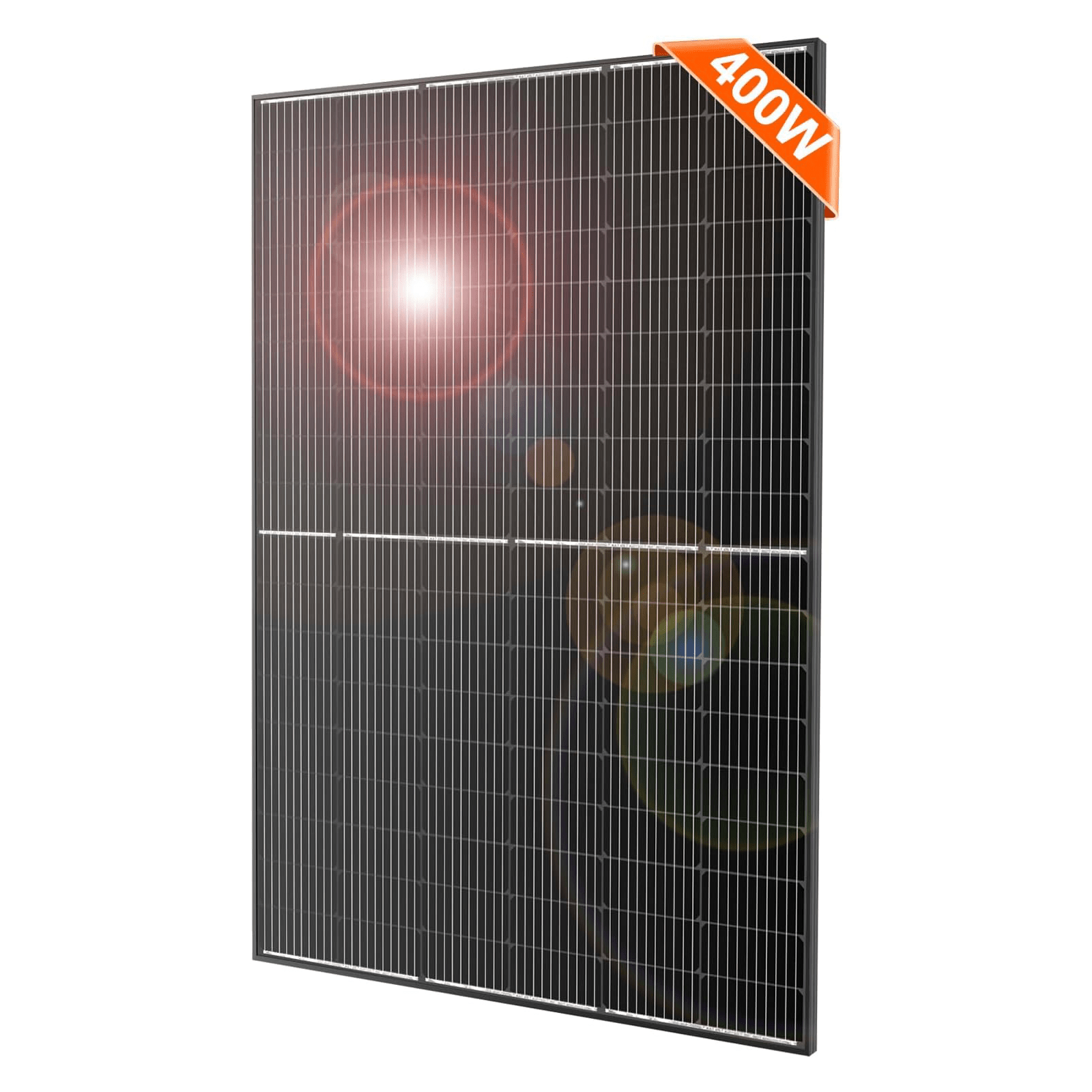

DOKIO 400W N-Type Monocrystalline Rigid Solar Panel
- 410W rated output (Pmax)
- 31V Vmp | 37.08V Voc
- 67.79 × 44.65 × 1.18 in (per module)
- Pre-installed 3m output cables

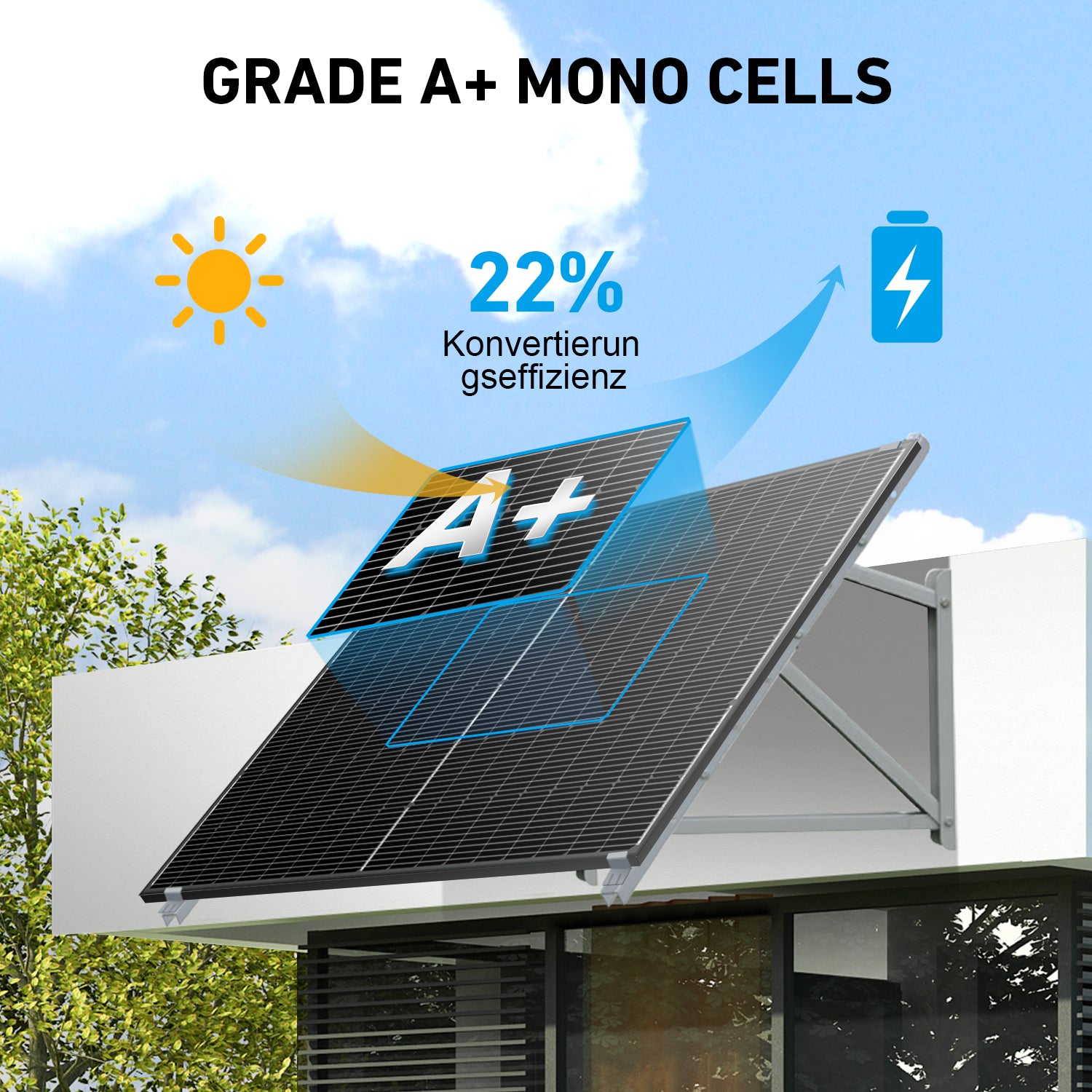

- 22% N-Type monocrystalline cells
- IP67 waterproof junction box
- Corrosion-resistant aluminum frame
- 25-year power output warranty
-
Estimated Delivery:Aug 22 - Aug 26
-
Local Warehouse - Free Shipping
DOKIO 400W N-Type Monocrystalline Rigid Solar Panel
Quick and Simple Solar Mounting Solutions
Electrical Specifications
| Maximum Power (Pmax) | 410W |
|---|---|
| Power Tolerance | ±3% |
| Voltage at Pmax (Vmp) | 31.00V |
| Current at Pmax (Imp) | 13.09A |
| Open Circuit Voltage (Voc) | 37.08V |
| Short Circuit Current (Isc) | 13.24A |
| Cell Type | N-Type Monocrystalline |
| Cell Efficiency | 22% |
| Maximum System Voltage | DC1000V |
| Maximum Series Fuse | 15A |
Operating Conditions
| Operating Temperature | -45°C to +80°C |
|---|---|
| NOCT | 45°C ±2°C |
| Standard Test Conditions (STC) | AM 1.5 / 1000W/m² / 25°C |
Electrical values are measured under Standard Test Conditions (STC): irradiance 1000W/m², AM 1.5, cell temperature 25°C.

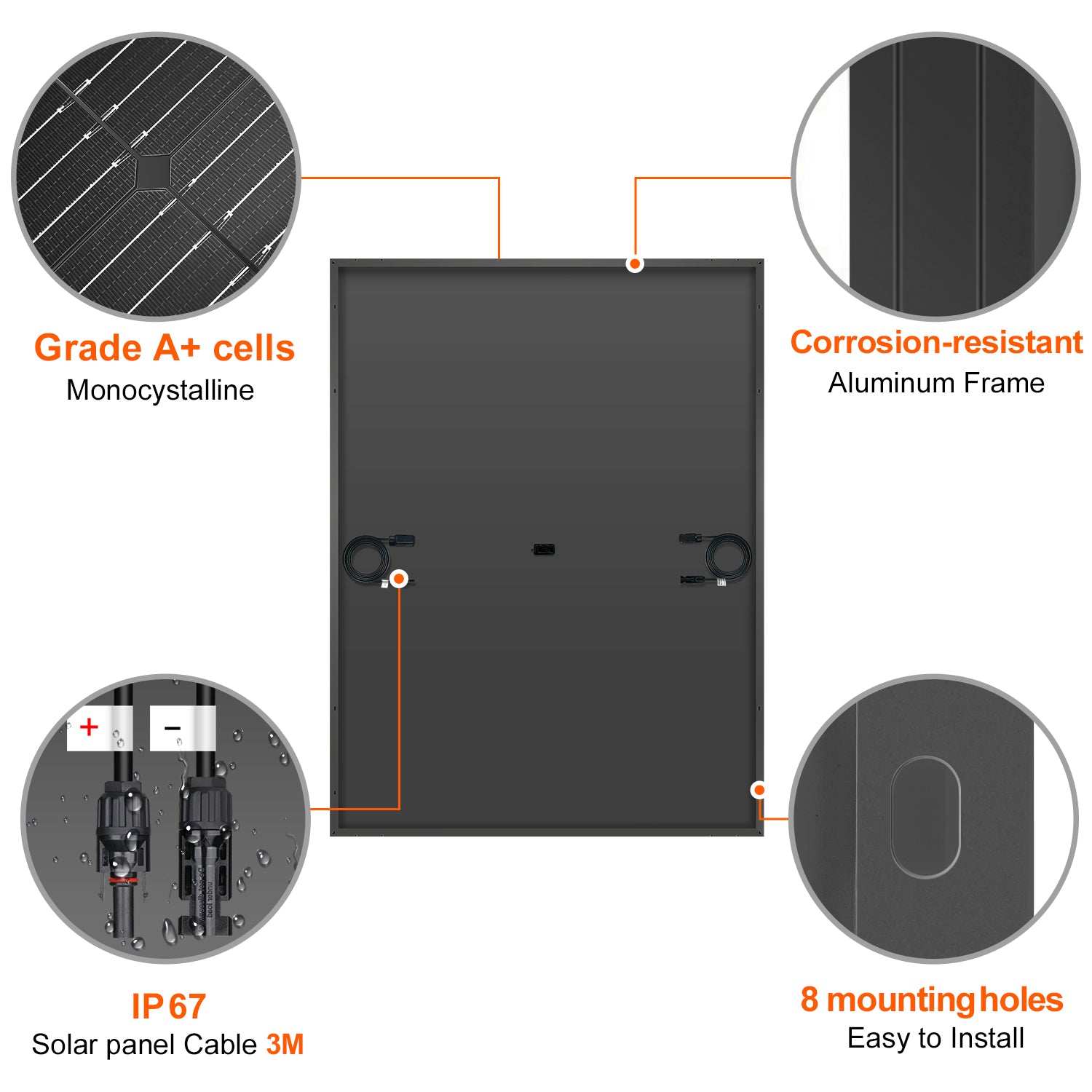

Construction & Protection
| Front Surface | Tempered Glass |
|---|---|
| Frame | Aluminum |
| Junction Box Rating | IP67 |
| Mounting | Pre-drilled holes for fixed installations |
Connection & Integration
| Connector Type | MC4 (standard) |
|---|---|
| Output Cable Length | 3m factory-installed leads |
| Cable Marking | TÜV SÜD • IEC 62930 • EN 50618 (PV cable) |
| Field Wiring Requirement | Minimum No.12 AWG copper wire, 90°C insulation minimum |
| Array Wiring | Panels ship individually; series/parallel wiring is user-configured |
| Compatibility | 12V/24V battery systems & power stations (controller required, not included) |

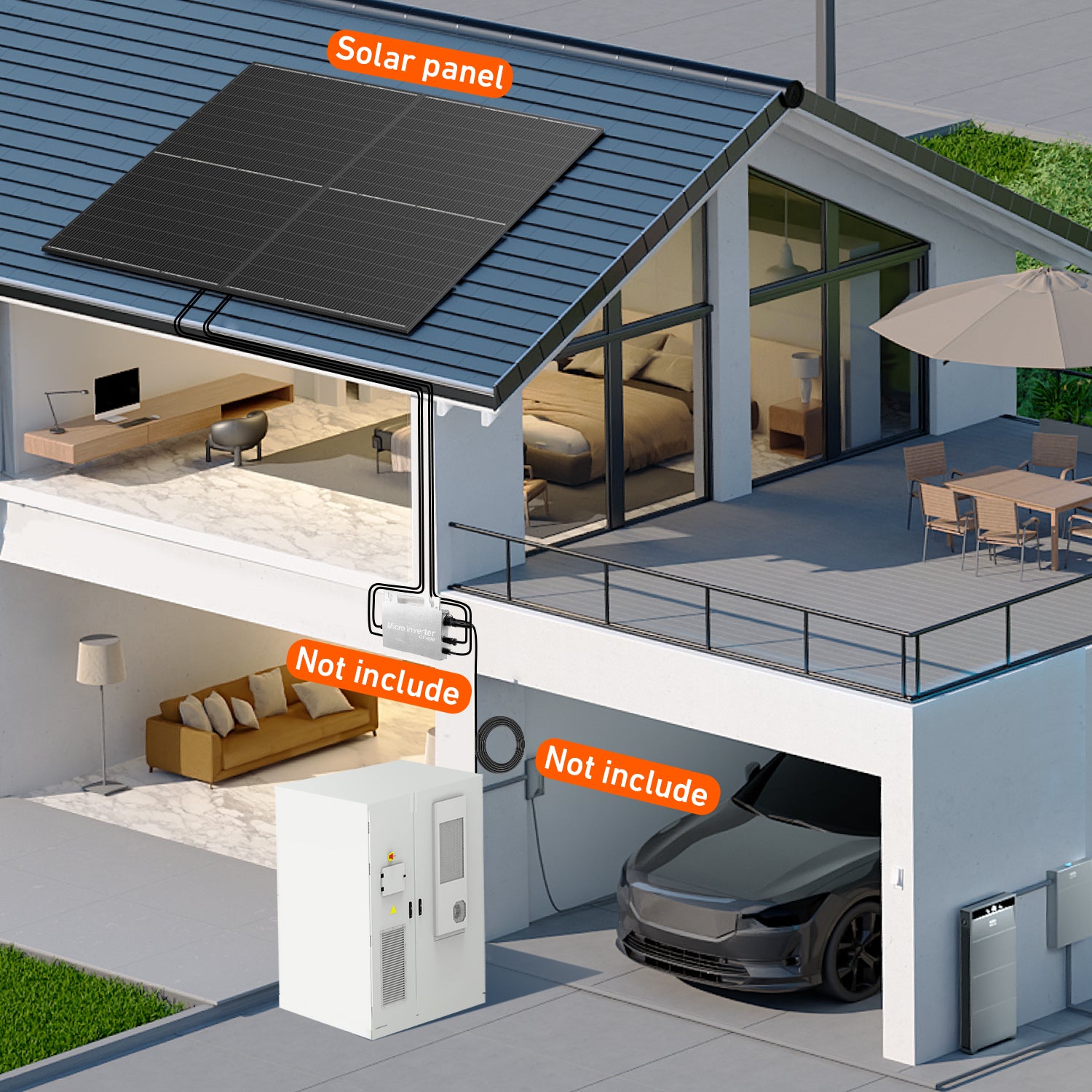

Note: This product includes solar panels only. Series/parallel configuration depends on system design and controller specifications.

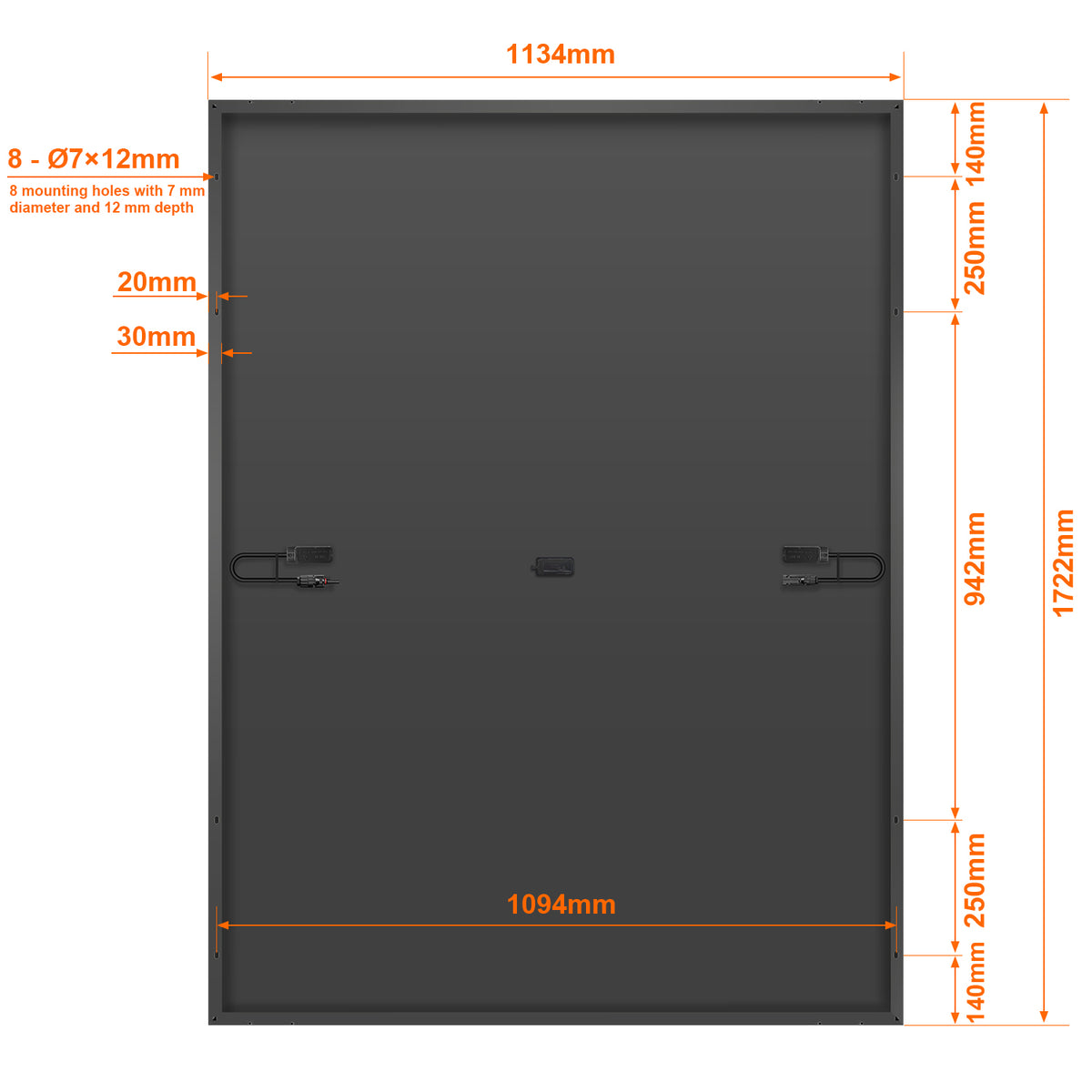

Dimensions
| Size (per module) | 67.79 × 44.65 × 1.18 in (1722 × 1134 × 30 mm) |
|---|---|
| Weight (per module) | 49.38 lb (22.4 kg) |
Package Contents

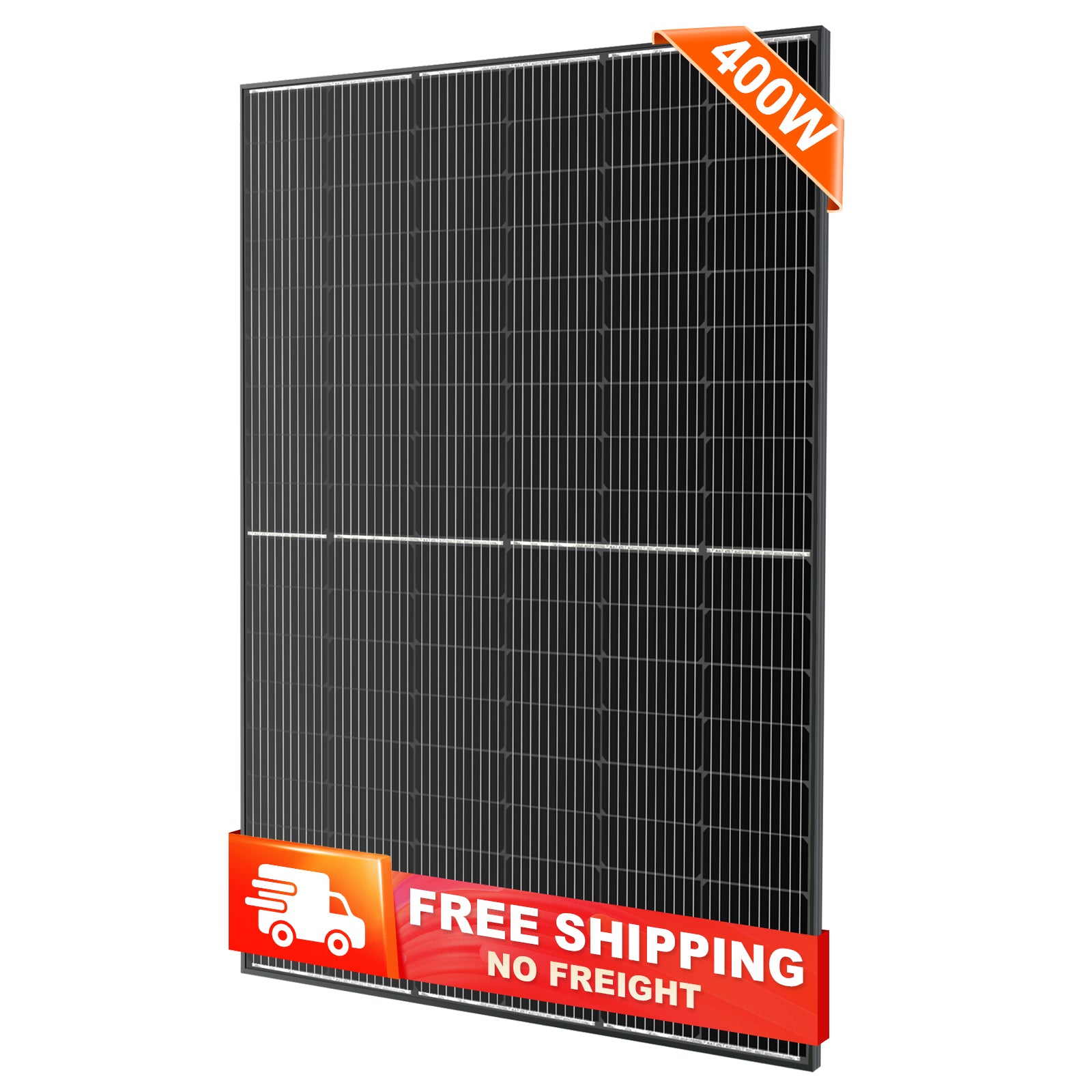

| 400W — 1 Panel | 1 × 400W rigid solar panel |
|---|---|

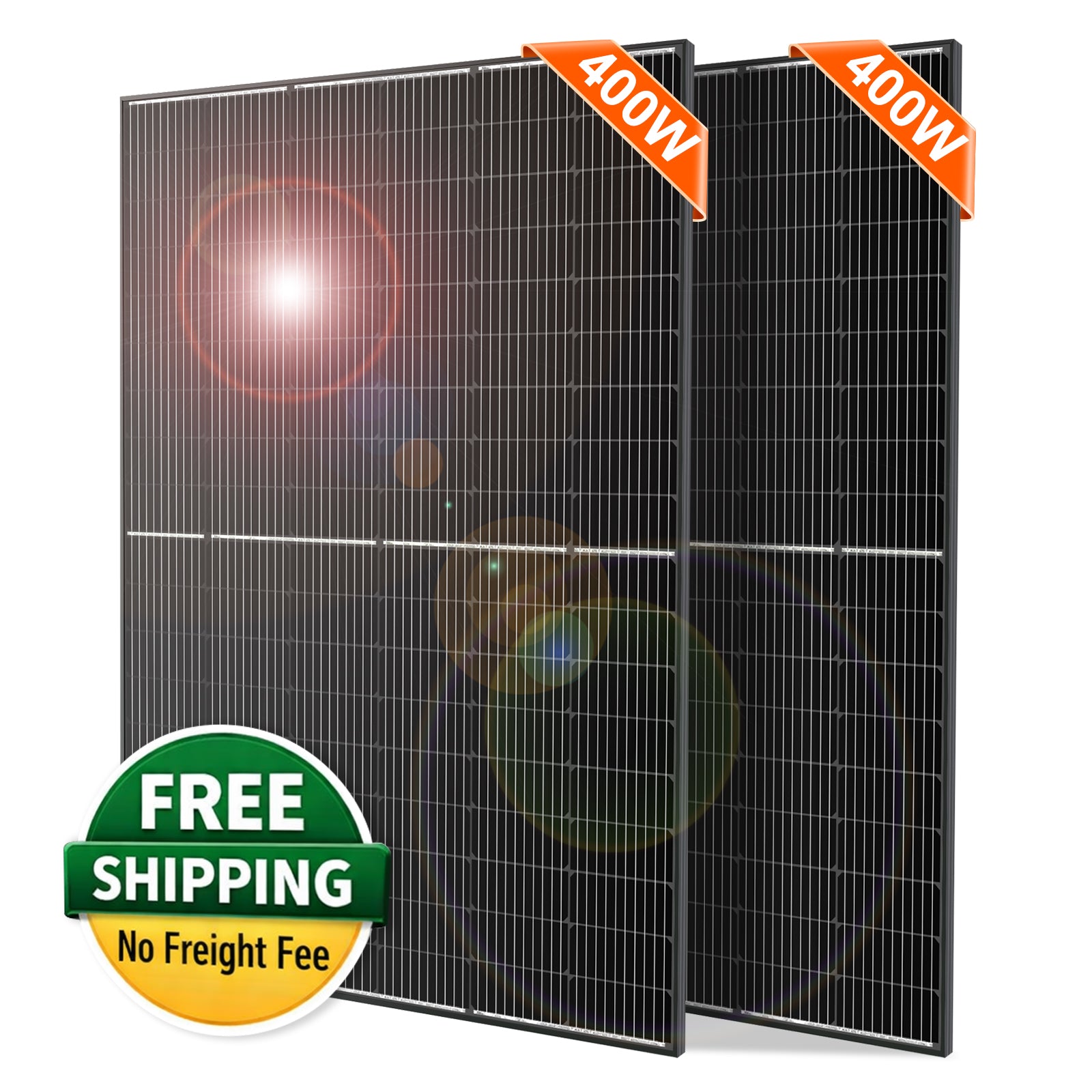

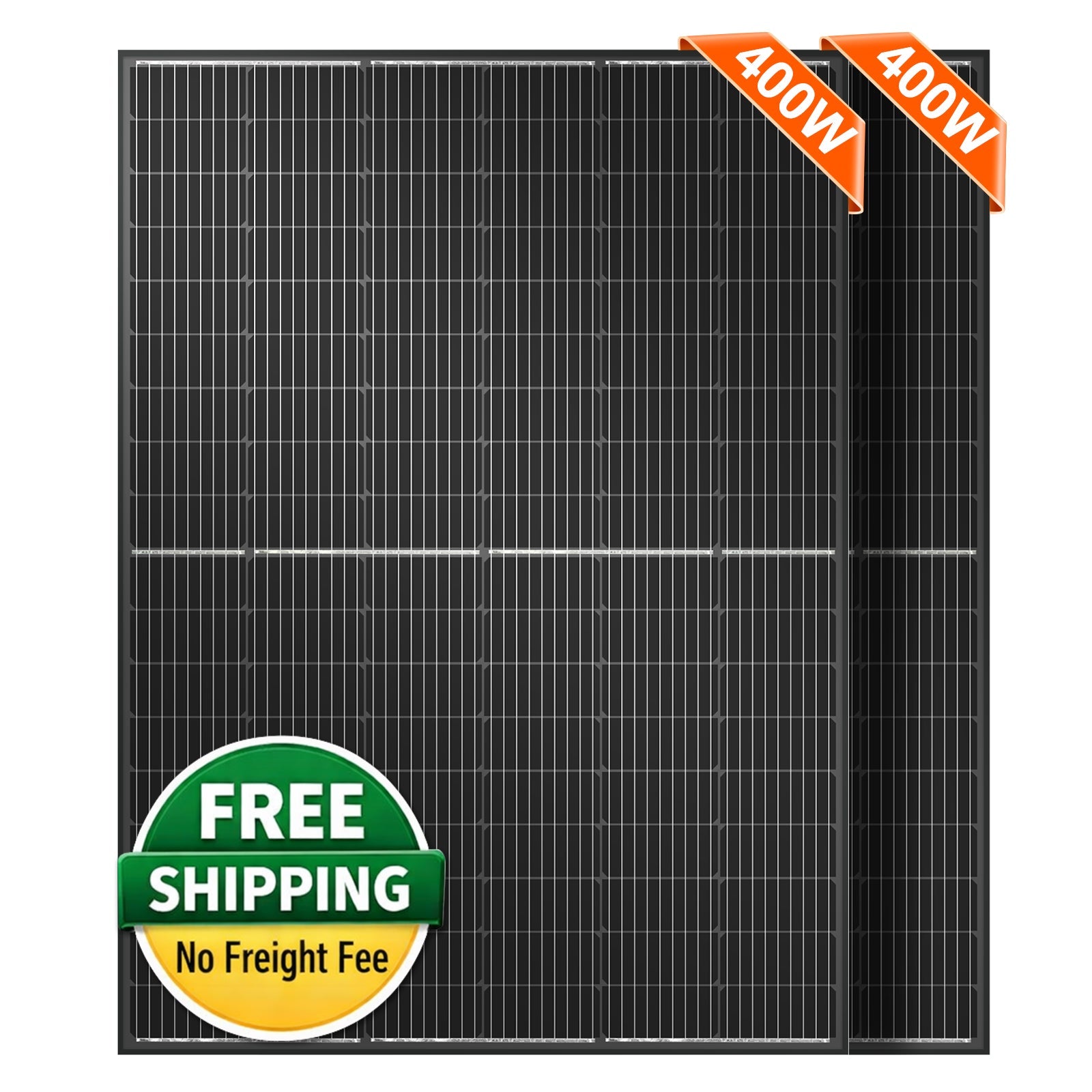

| 800W — 2 Panels | 2 × 400W rigid solar panels |

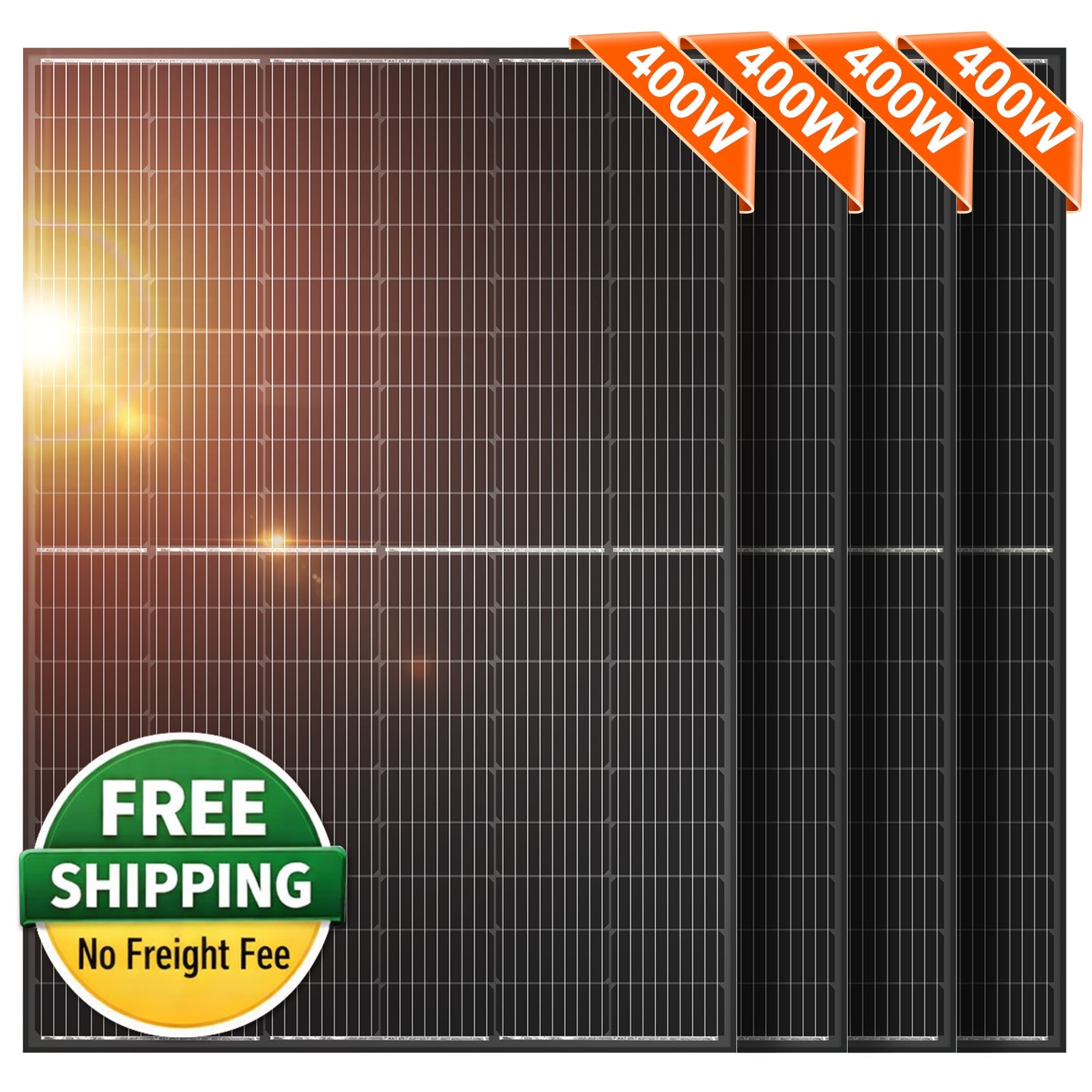

| 1600W — 4 Panels | 4 × 400W rigid solar panels |
Wiring accessories (branch connectors, extension cables) and charge controller are not included unless explicitly stated in the product options.
Warranty, shipping, returns & customer support for DOKIO solar panels and accessories.
Product Warranty
Covers defects in materials and workmanship under normal use.
25-Year Power Output Warranty
Cosmetic damage, normal wear and tear
Damage caused by accidents, shipping mishandling, or external factors
Accessories and consumable parts (unless otherwise stated)
Shipping & Delivery
Local Warehouses: United States, Germany, United Kingdom
Processing Time: Ships within 48 hours (business days)
Delivery Time: 2–5 business days depending on location
Tracking: Tracking number provided via email once shipped
Note: Please ensure your shipping address is correct. Report damaged packages within 7 days of delivery.
Returns & Refunds
Return Window: 30 days from delivery date
Condition: Item must be unused and in original packaging
Return Shipping: We provide a prepaid return label for defective, damaged, or incorrect items.
Refund Processing: 7–14 business days after inspection
Contact Us
Need assistance or technical support?
Email us at support@dokiopv.com
Response Time: Within 24 business hours
Frequently Asked Questions (FAQ)
What can a 400W solar panel power?
How many 400W solar panels do I need for a home backup system?
• 2 panels = 800W solar array
• 4 panels = 1600W solar array

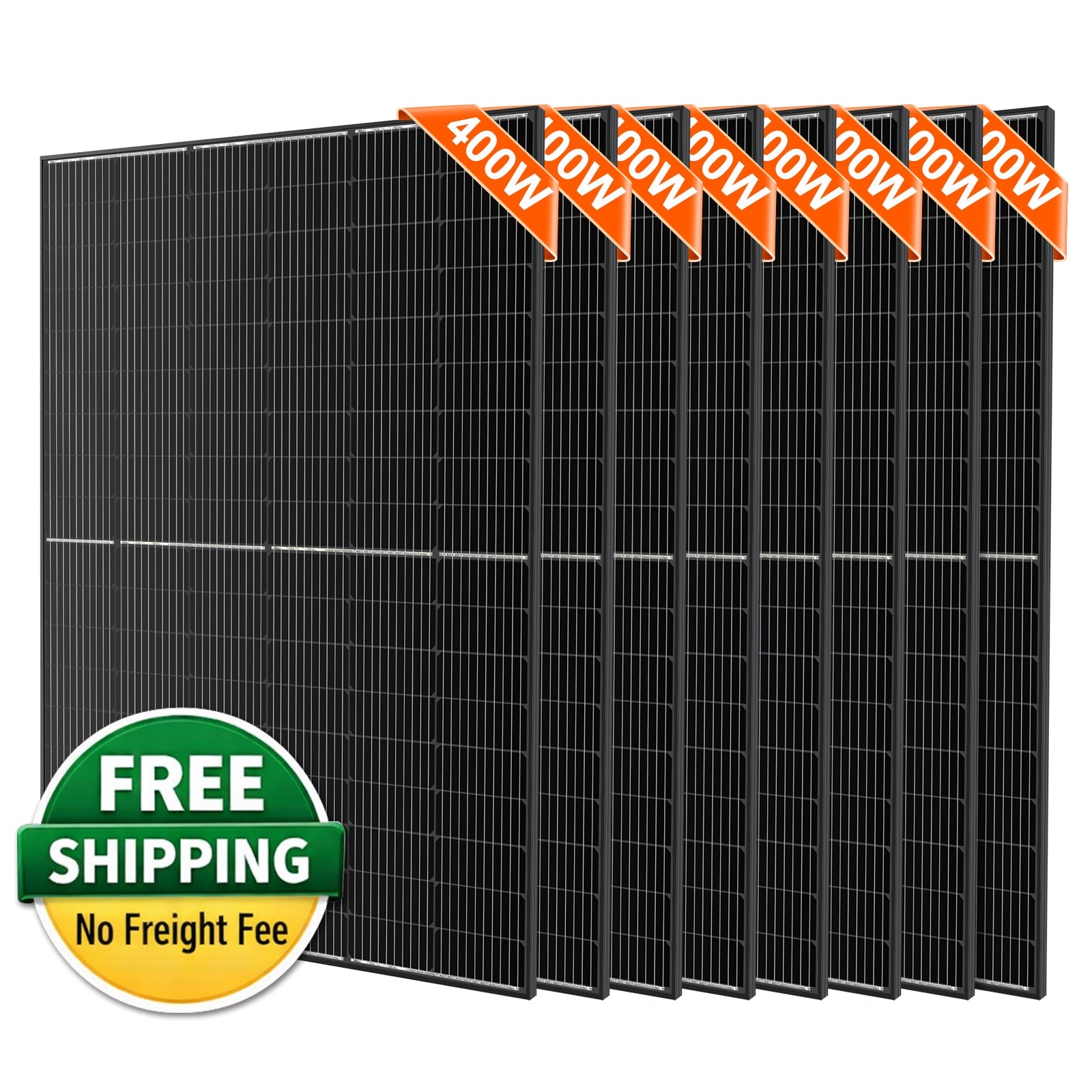

• 8 panels = 3200W solar array
• 10 panels = 4000W solar array for larger backup systems A larger solar array allows you to recharge batteries faster and better support off-grid or home backup applications.
Can I connect multiple 400W panels together?
Do I need a battery and inverter for my solar panel system?
Is this panel compatible with LiFePO4 batteries?
What size inverter do I need for a 400W solar system?
Is it easy to mount this panel?

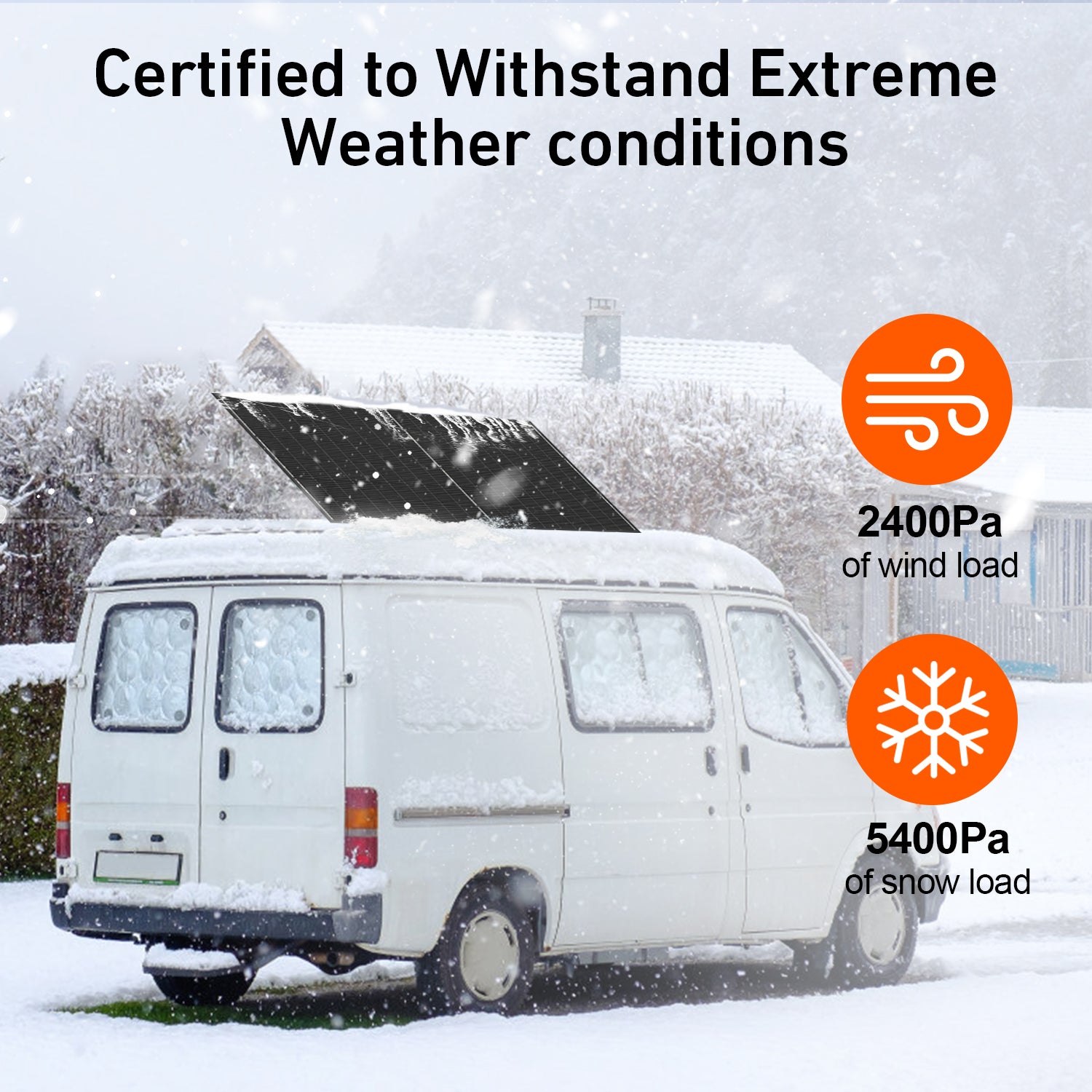

Can it withstand harsh weather conditions?
Will this work with my power station (EcoFlow / Bluetti / Jackery)?
Reviews
Customer Reviews
exceellent product!
Just hooked them up. They work great
Well packaged. Getting good results.
I had an issue with one of the panels I purchased out of 6I emailed and talked to customer service and after a couple of tests that they talked me through, they determined that the panel was malfunctioning and refunded my money. For that one panel, thank you
DOKIO

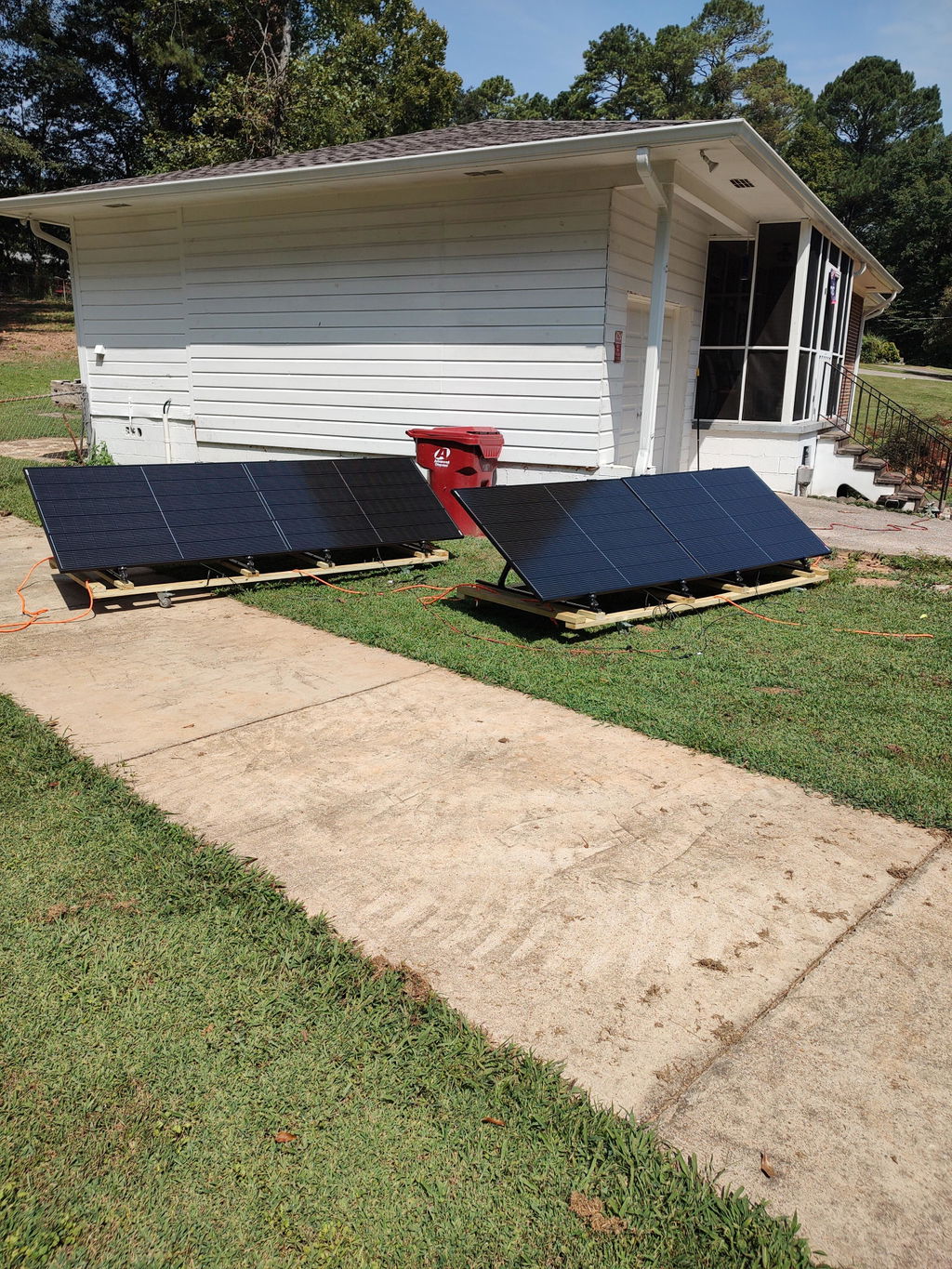

Excellent solar panel for a great price. Delivery took some time but it was worth waiting for. Well packaged panels arrived safely. I ordered 4x400W panels and today was my first day of use. Even though it was partly cloudy I was getting 1585W which is amazing. Highly recommend.
