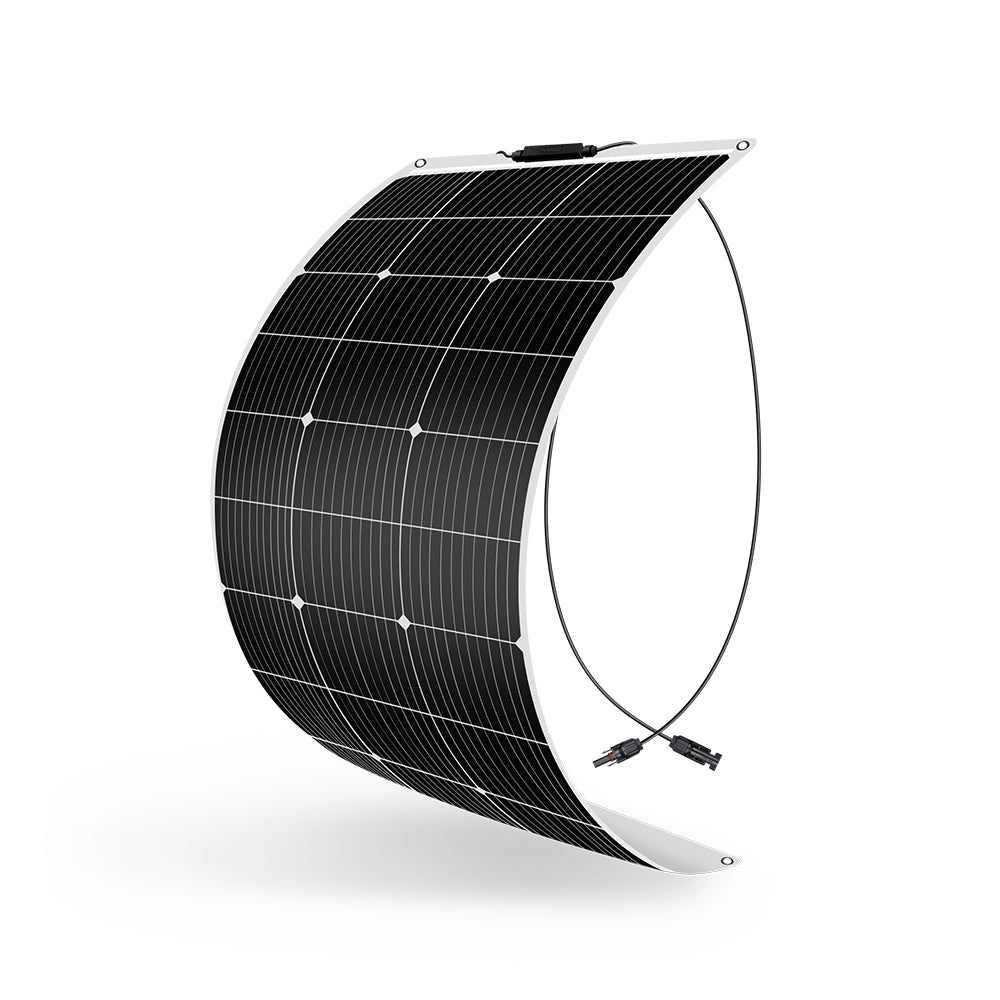

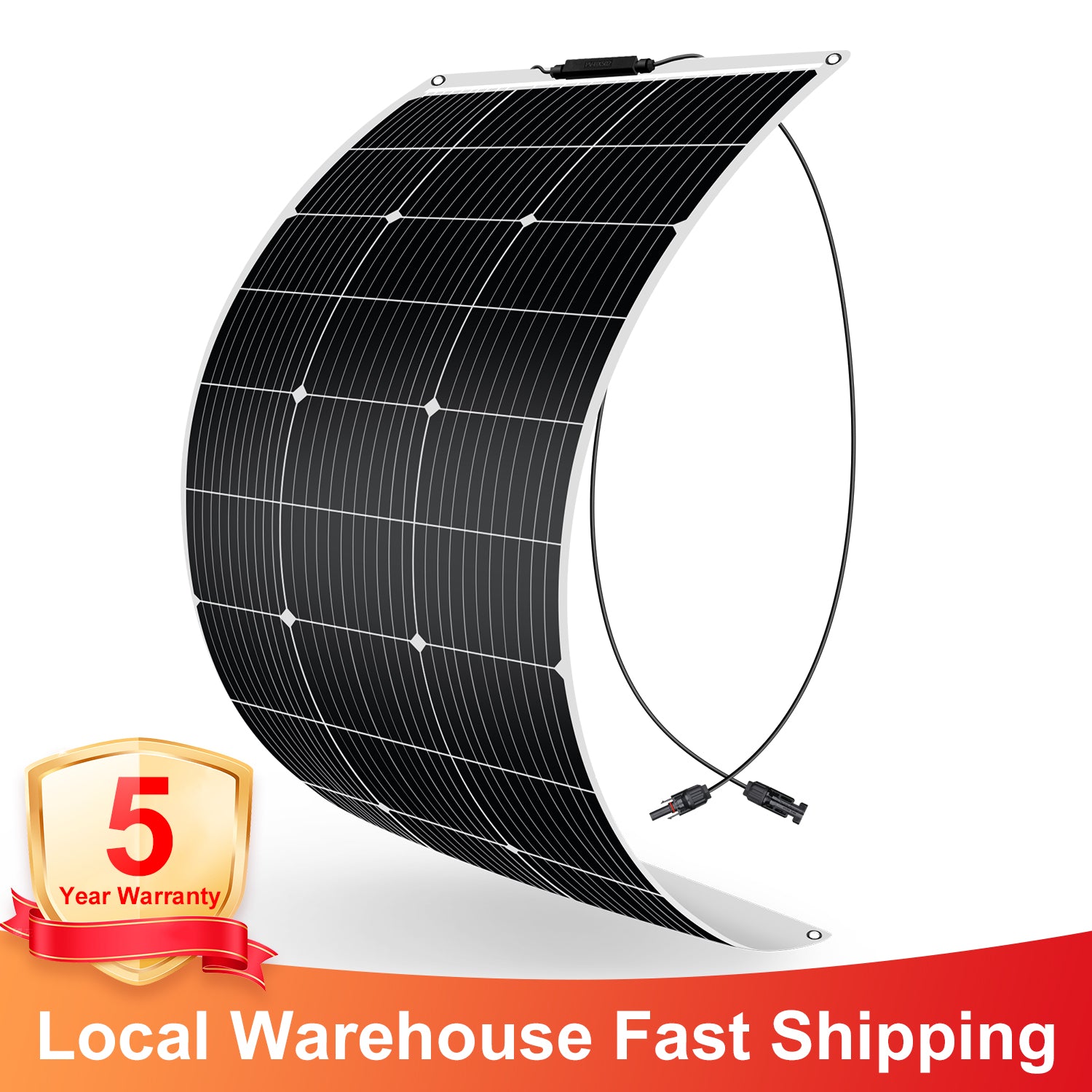

Dokio 100w Flexible Mono Portable Solar Panel for Home/Caravan/RV/Boat
-
Estimated Delivery:Sep 24 - Sep 28
-
Free Shipping : Free Shipping Now !
Dokio 100w Flexible Mono Portable Solar Panel for Home/Caravan/RV/Boat

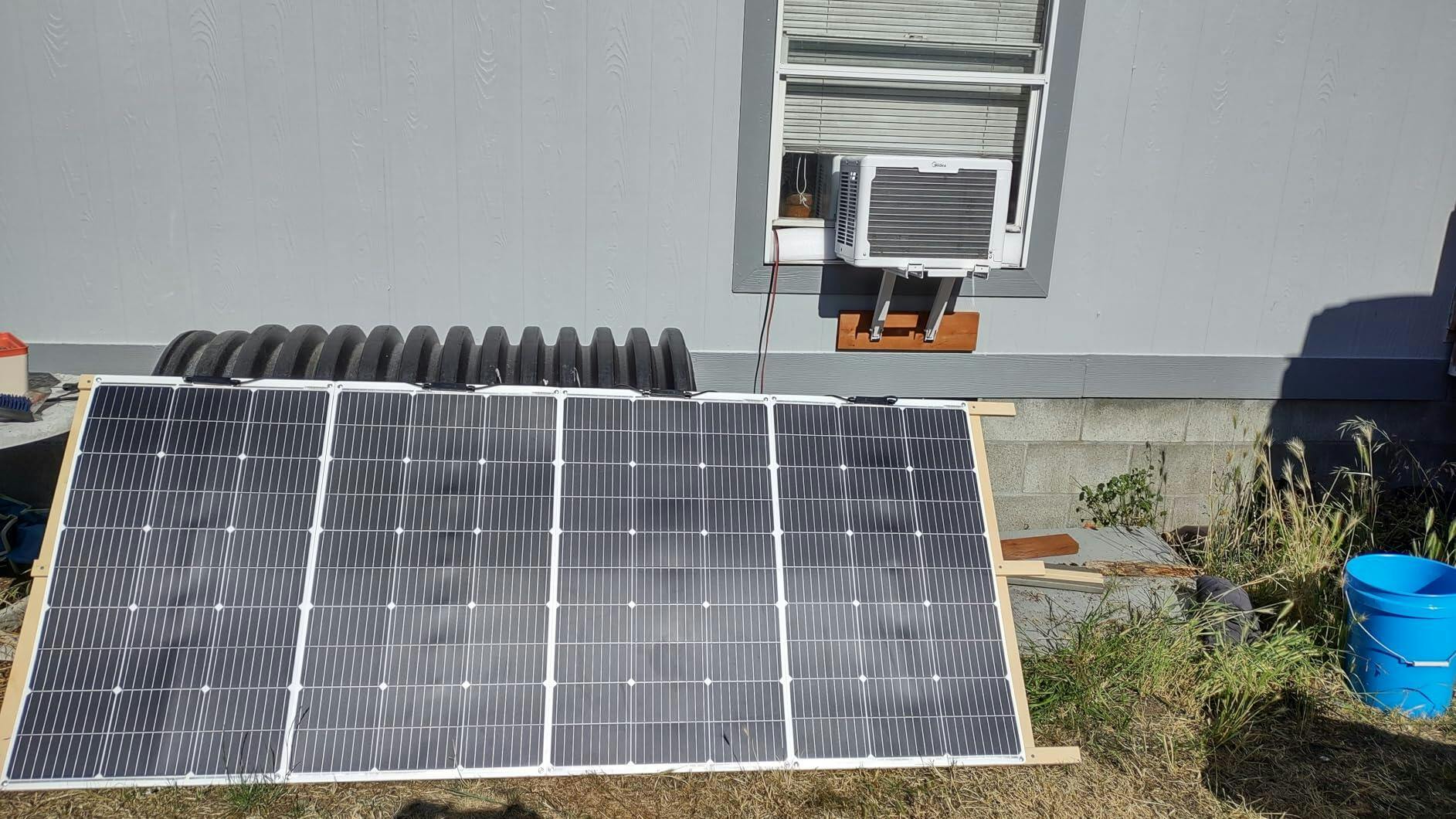

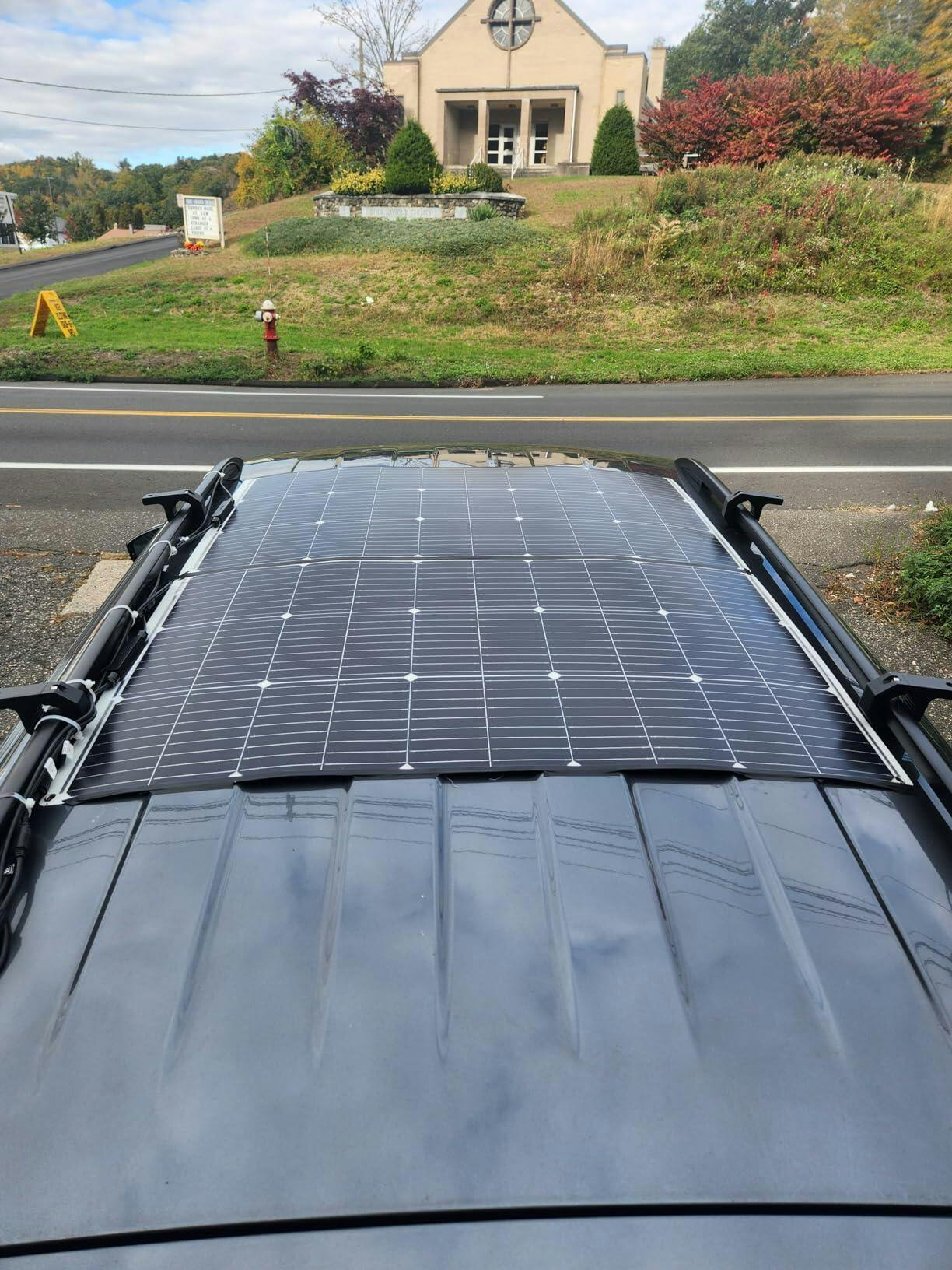

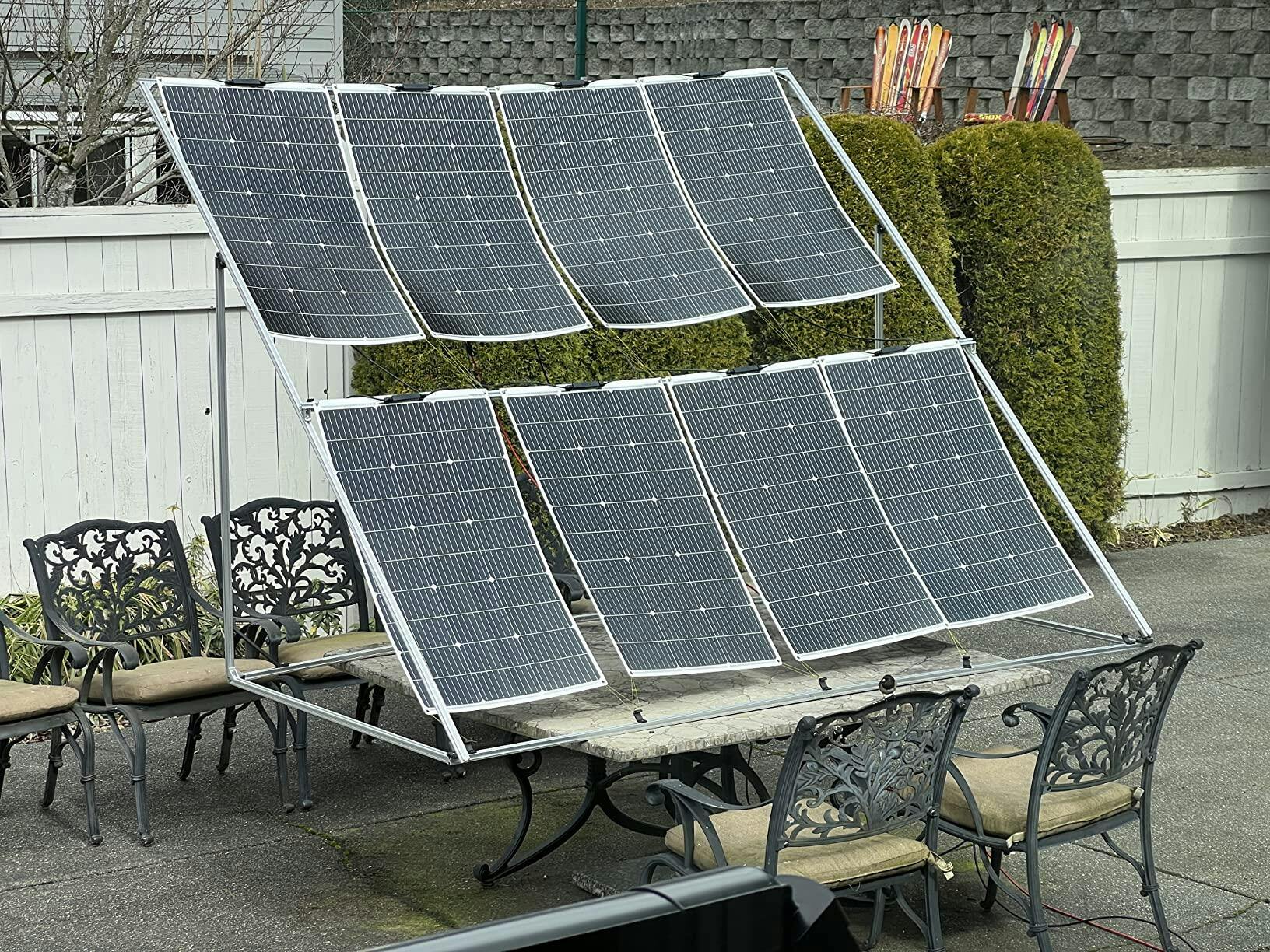

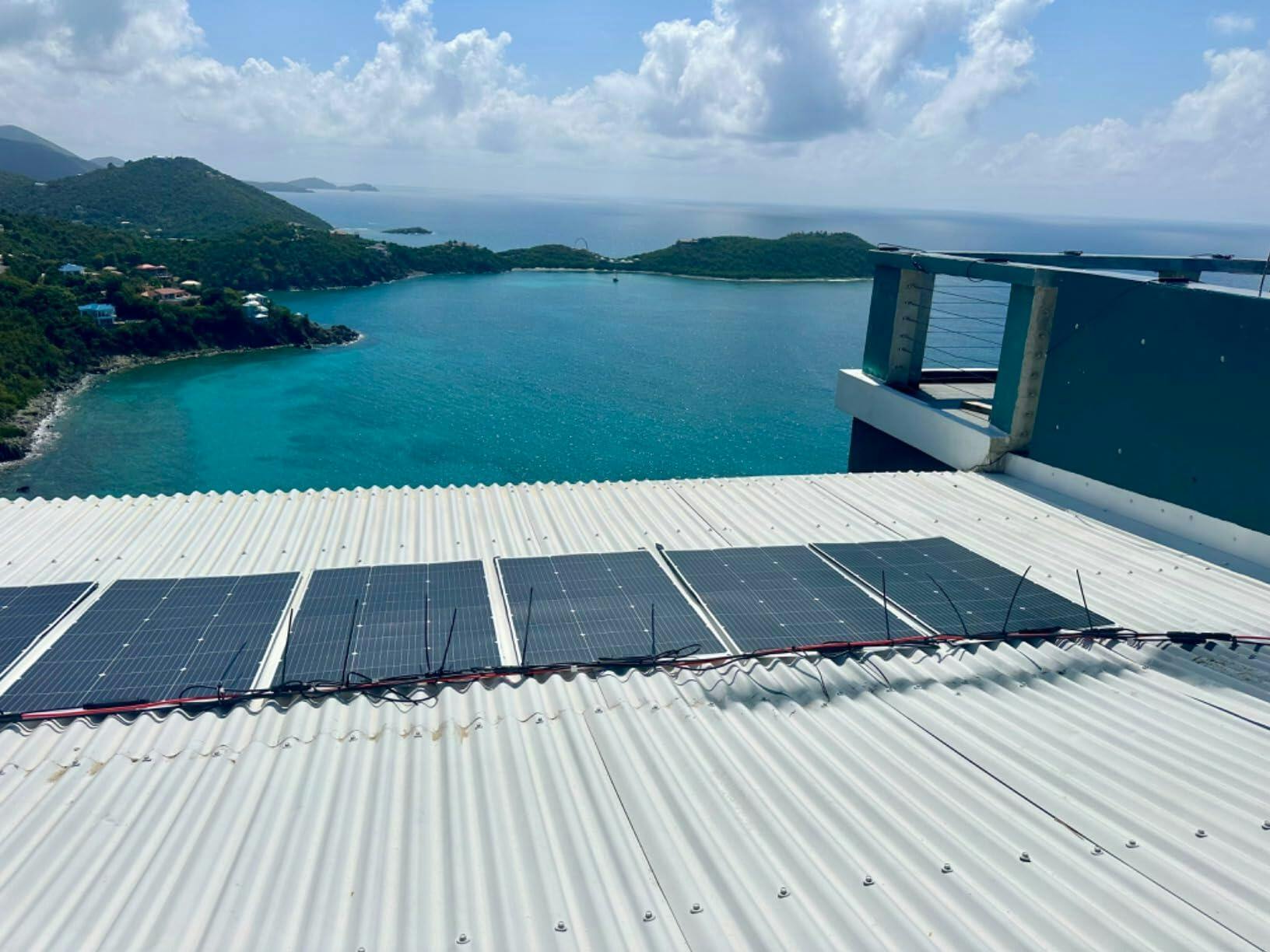

Multiple Usage Scenarios
Technical Specifications
Water + Fire Resistant
Connection & Compatibility
🔌 Output Connector
Standard MC4 connectors compatible with most charge controllers and adapters.
🔧 Connection Methods

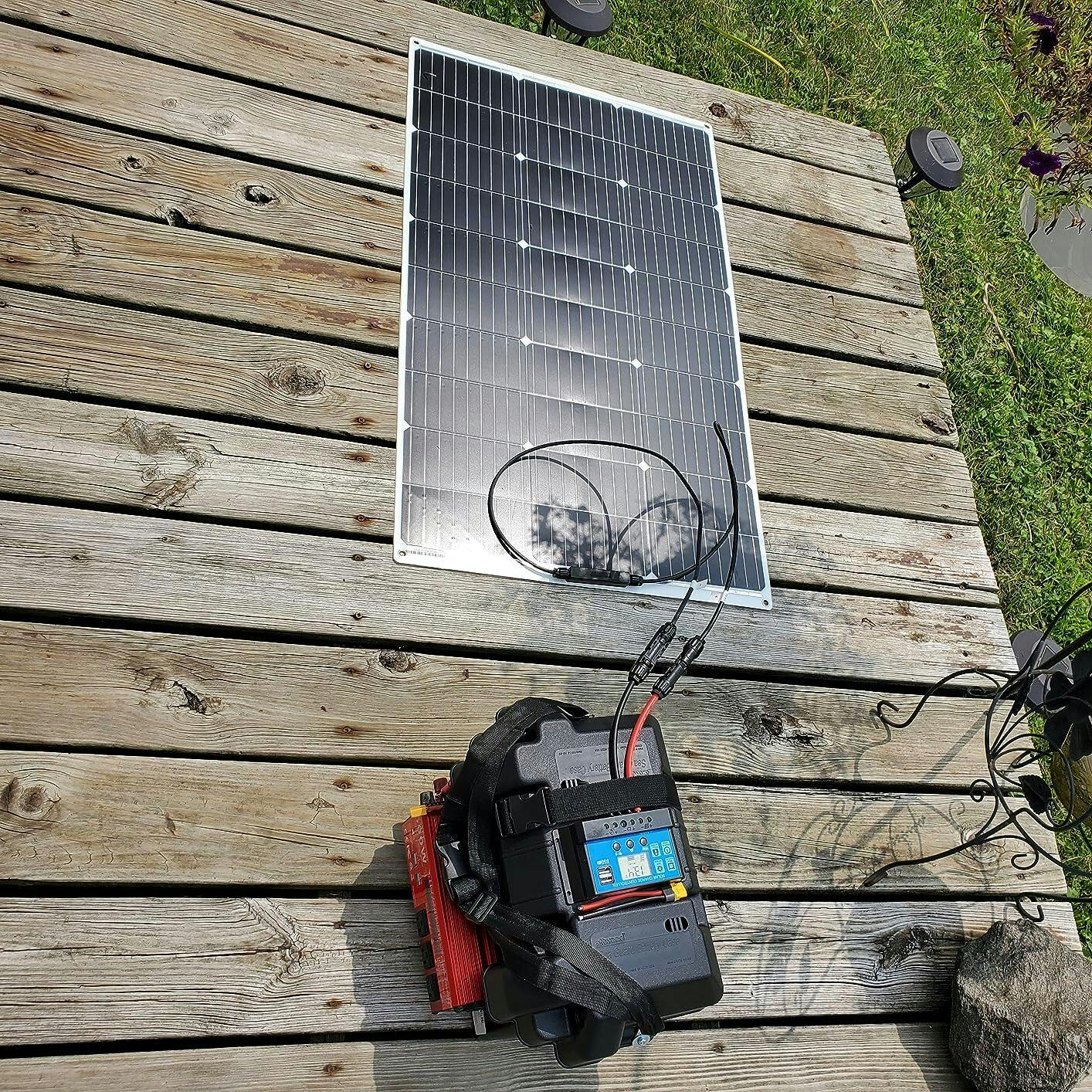

- Single Panel: Plug directly into a 12V PWM or MPPT controller.

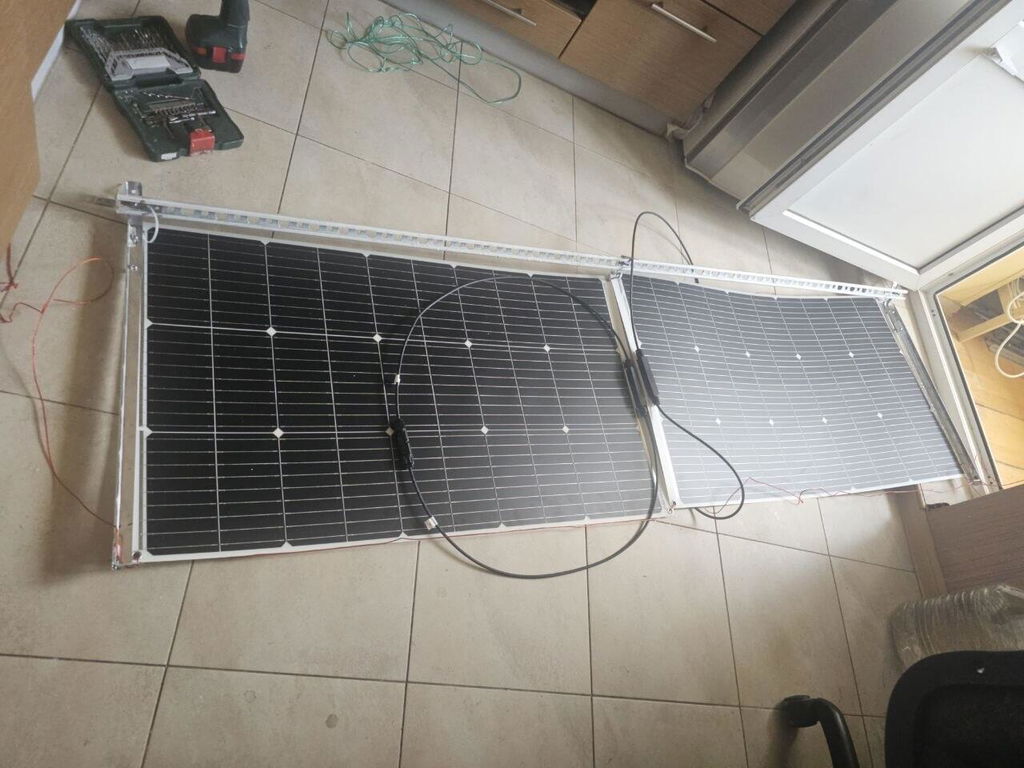

- Parallel: Use MC4 Y-branch connectors. Voltage remains 18V; current increases. Best for 12V systems.
- Series: Connect panel + to panel –. Voltage adds up; current stays the same. For 24V+ systems (check controller specs).

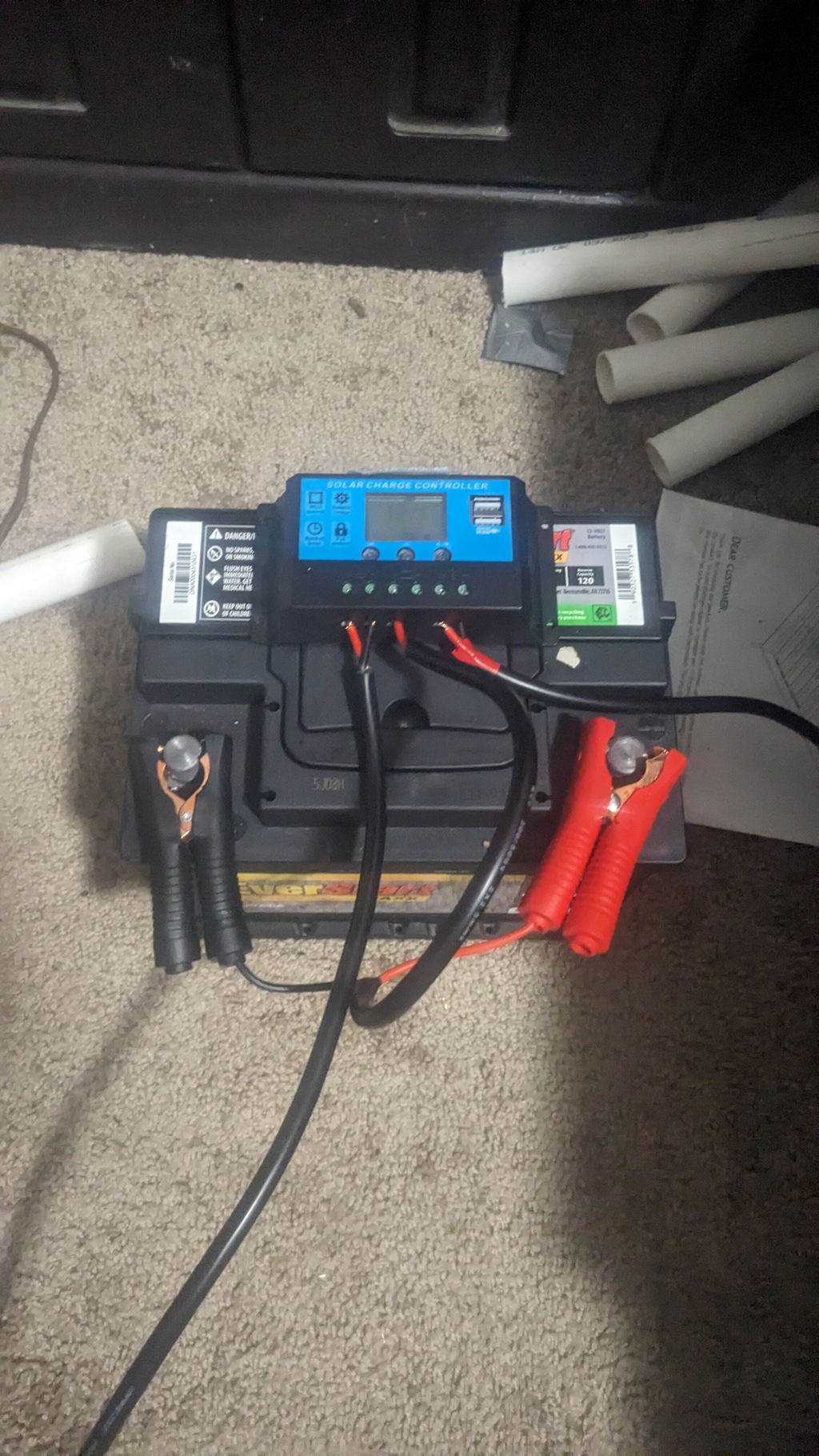

⚙️ Charge Controller Compatibility
Supports both PWM and MPPT controllers. MPPT is recommended for optimal efficiency.
🔋 Battery Types
Compatible with sealed, AGM, GEL lead-acid batteries and lithium (LiFePO4, LTO, etc.).

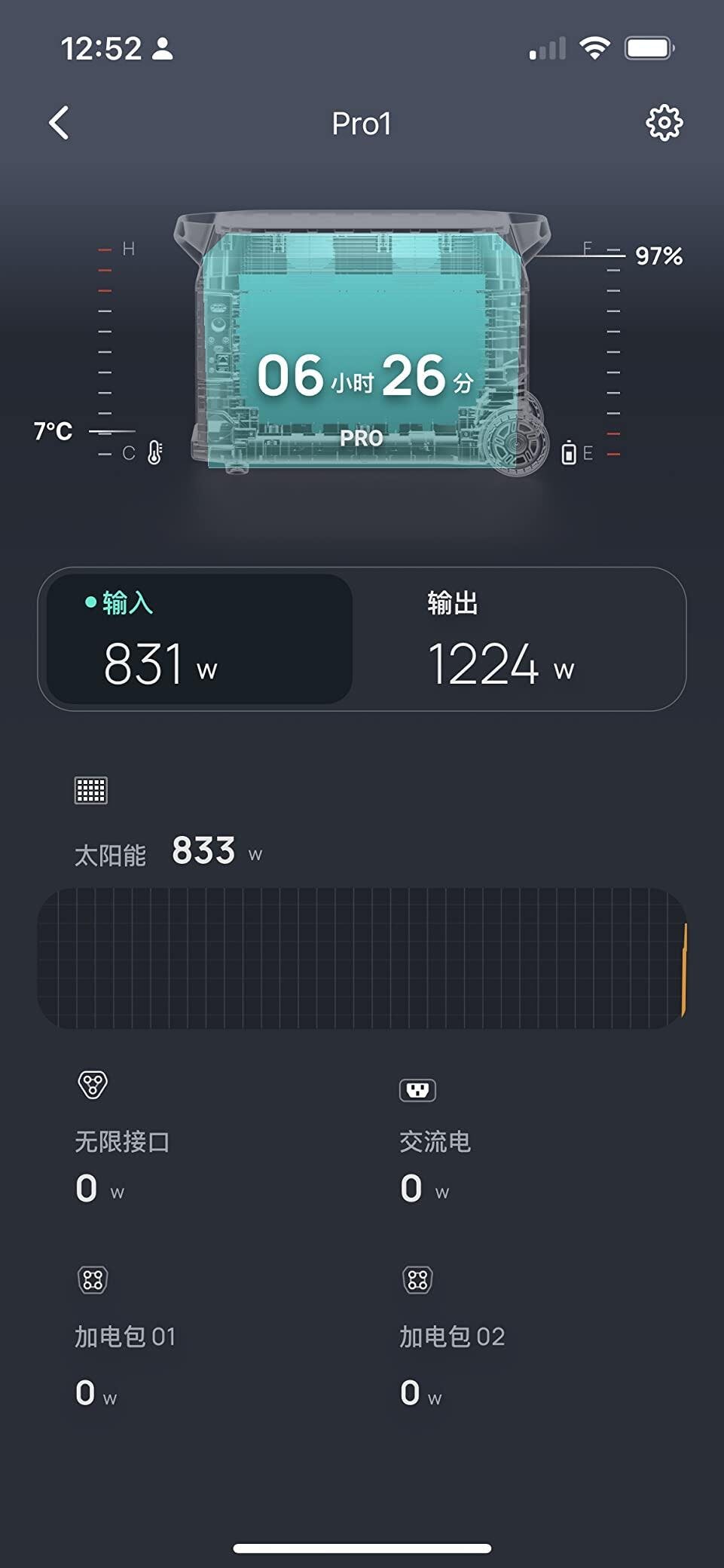

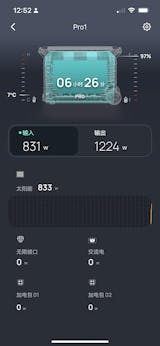

🔌 Power Station Support
Works with most portable power stations (EcoFlow, Jackery, Bluetti). MC4 to Anderson/DC5521/XT60 adapter may be needed. Always check input limits.
Dimensions
L x W x H: 38.4 × 22.2 × 0.04 in / 96 × 66 × 0.6 cm
Weight: 2.3 lb / 1.04 kg

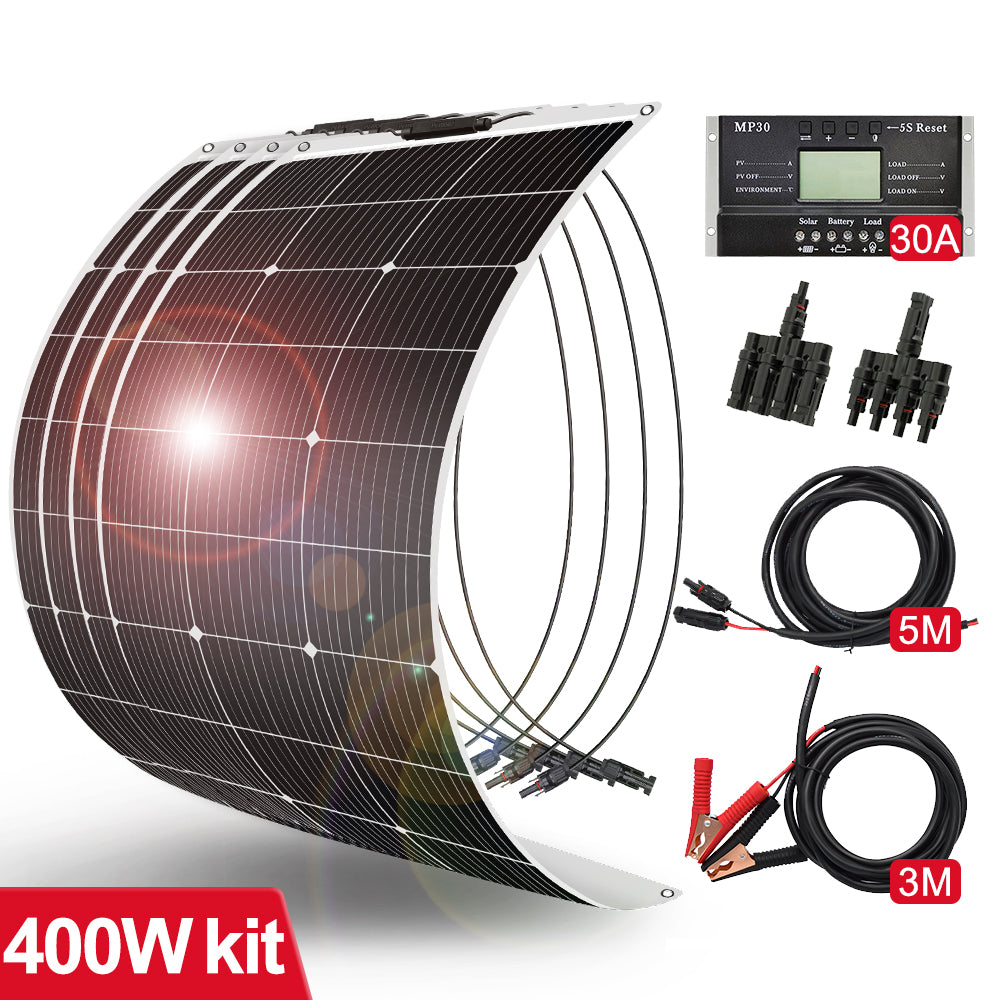

Kit Components
100w Flexible Mono Portable Solar Panel × 1
Product Warranty
Cosmetic damage or accessories
Purchases from unauthorized sellers
Shipping & Delivery
Processing Time: 1–2 business days
Delivery Time: 3–5 business days after processing
Tracking: Provided via email once shipped
Note: Incorrect shipping address may cause delay. Please report damaged packages within 7 days of delivery.
Returns & Refunds
Return Window: 30 days for unused items in original packaging
Return Shipping: Free (prepaid return label provided)
Refunds: Processed within 14 days after item is received
Contact Us
Have a question or need support?
Email us at support@dokiopv.com
FAQ
How do I get the most solar power?
Increase the efficiency of your solar panel by facing it directly at the sun without any obstructions. Remember to be careful when handling your solar panel because damaged cells provide less power.
Is this 100 watt solar panel suitable for extended backpacking or hiking?
it is very suitable for extended backpacking or hiking trips, camping, RV travel, and emergency power backup.

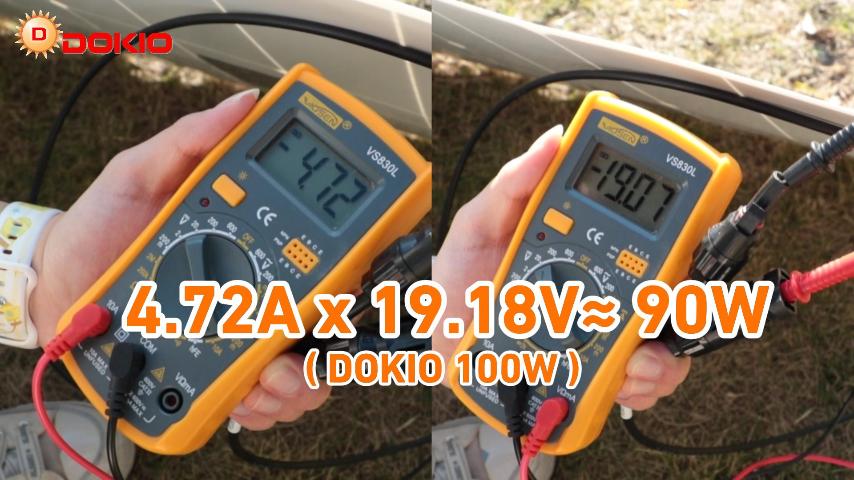

Why is the actual power output of my 100 watt solar panel portable is lower than 100W in practical use?
The actual output power of a 100W solar panel is typically lower than its rated power due to several factors:
Solar Irradiance: Rated power is measured under Standard Test Conditions (STC), which assume optimal conditions: 1000W/m² of sunlight, a panel temperature of 25°C, and direct sunlight. In real conditions, sunlight intensity is often lower due to cloud cover, time of day, or geographical factors, leading to reduced output.
Temperature: Solar panels lose efficiency as their temperature rises. High temperatures cause a decrease in output power, as most panels have a negative temperature coefficient, meaning their output decreases as the temperature increases.
Angle and Orientation: If the solar panel is not positioned to directly face the sun or at the optimal angle, it will receive less sunlight, resulting in lower output.
Panel Aging: Over time, solar panels degrade, and their efficiency decreases.
Shading: Even partial shading (from trees, buildings, etc.) can significantly reduce a panel's output, as it affects the entire panel's performance.
