Dokio 1*100w Panneau solaire monocristallin rigide 100w pour maison/caravane/camping-car/bateau
-
Estimated Delivery:Dec 28 - Jan 01
-
Shipping Fees : Free Shipping Now !
Dokio 1*100w Panneau solaire monocristallin rigide 100w pour maison/caravane/camping-car/bateau

Technical Specifications
Dimensions
Size: 50.79 × 29.53 × 1.18 in / 129 × 75 × 3 cm
Weight: 24.69 lb / 11.2 kg
Kit Components
200W DOKIO Rigid Portable Solar Panel × 1
Product Warranty
Cosmetic damage or accessories
Purchases from unauthorized sellers
Shipping & Delivery
Processing Time: 1–2 business days
Delivery Time: 3–5 business days after processing
Tracking: Provided via email once shipped
Note: Incorrect shipping address may cause delay. Please report damaged packages within 7 days of delivery.
Returns & Refunds
Return Window: 30 days for unused items in original packaging
Return Shipping: Free (prepaid return label provided)
Refunds: Processed within 14 days after item is received
Contact Us
Have a question or need support?
Email us at support@dokiopv.com
FAQ
Can it withstand harsh weather?
Yes, this solar panel is designed to withstand harsh weather conditions. It has a waterproof design and a tough, sealed aluminum frame that is perfect for all weather conditions. The product also comes with a 25-year transferable power output warranty and a 10-year material and workmanship warranty.
What can a 200W solar panel power?
Under good sunlight, it can support:
12V RV batteries
Lithium power stations
Small fridges
Fans, lights, small inverters
Emergency USB charging
RV trailer/boat 12V systems
Real output varies by sunlight and installation angle.
What size of wire should I use?

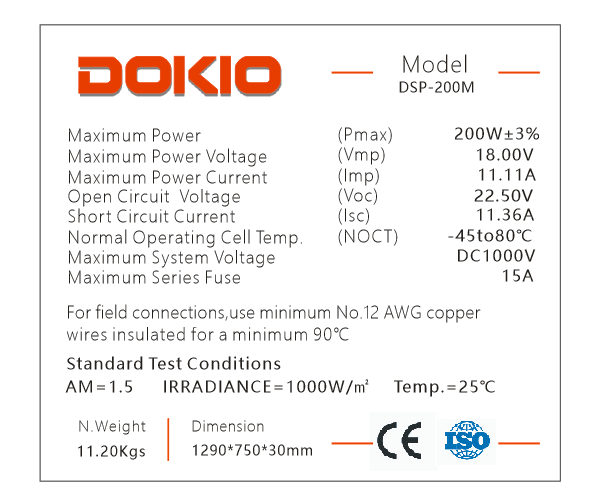

As recommended on the nameplate:
Minimum 12 AWG copper wire
Temperature rating ≥ 90°C
Can the panel be used in series or parallel?
Yes:
Series → higher voltage (for 24V systems or large MPPTs)
Parallel → higher current (for 12V systems or cloudy conditions)
Always check your controller’s maximum PV voltage and current limits.

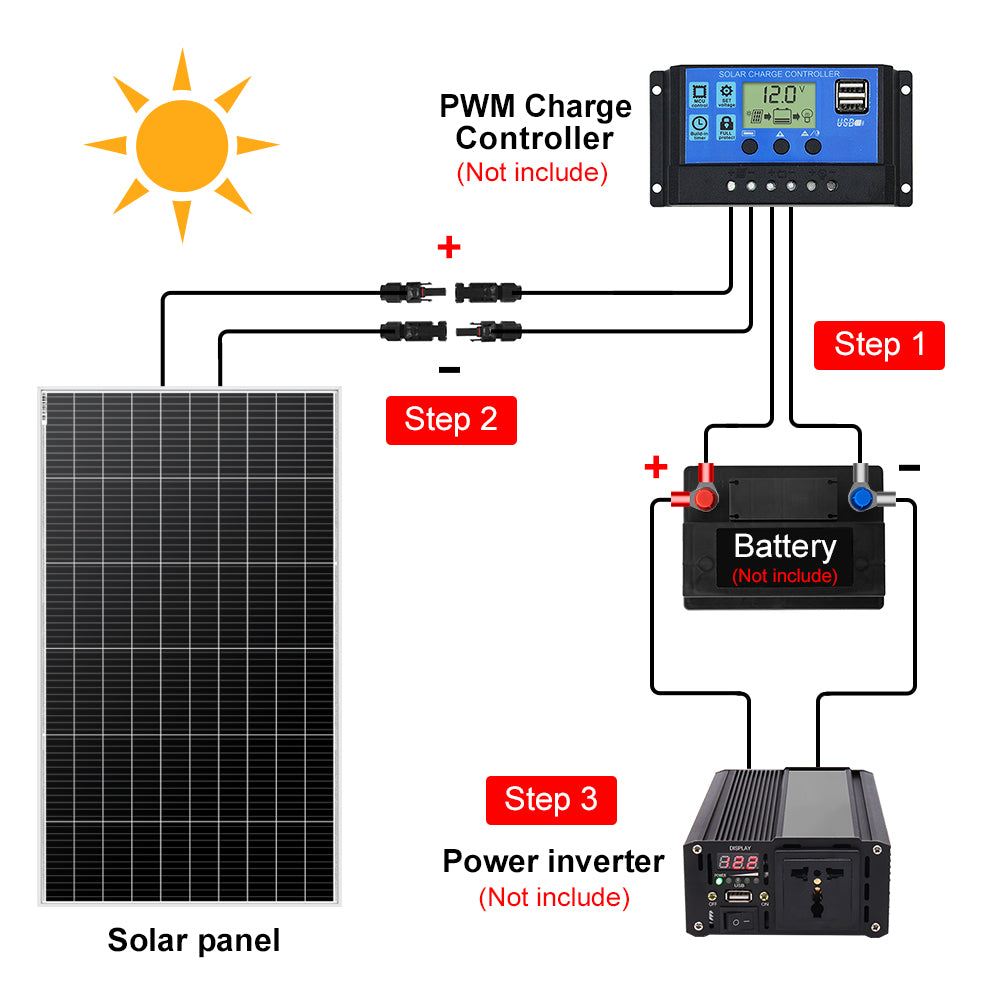

Do I need a solar charge controller?
Yes, unless you are connecting to a portable power station.
For batteries:
12V systems: use a 20A+ PWM or MPPT controller
24V systems: use two panels in series + 20A+ MPPT controller
Portable power stations have a built-in solar controller, so no extra controller is needed.
Can this panel charge my portable power station (Jackery/EcoFlow/Bluetti)?
Yes.
Just make sure your power station supports:
Solar input voltage up to 22.5V (Voc)
Solar current up to 11A

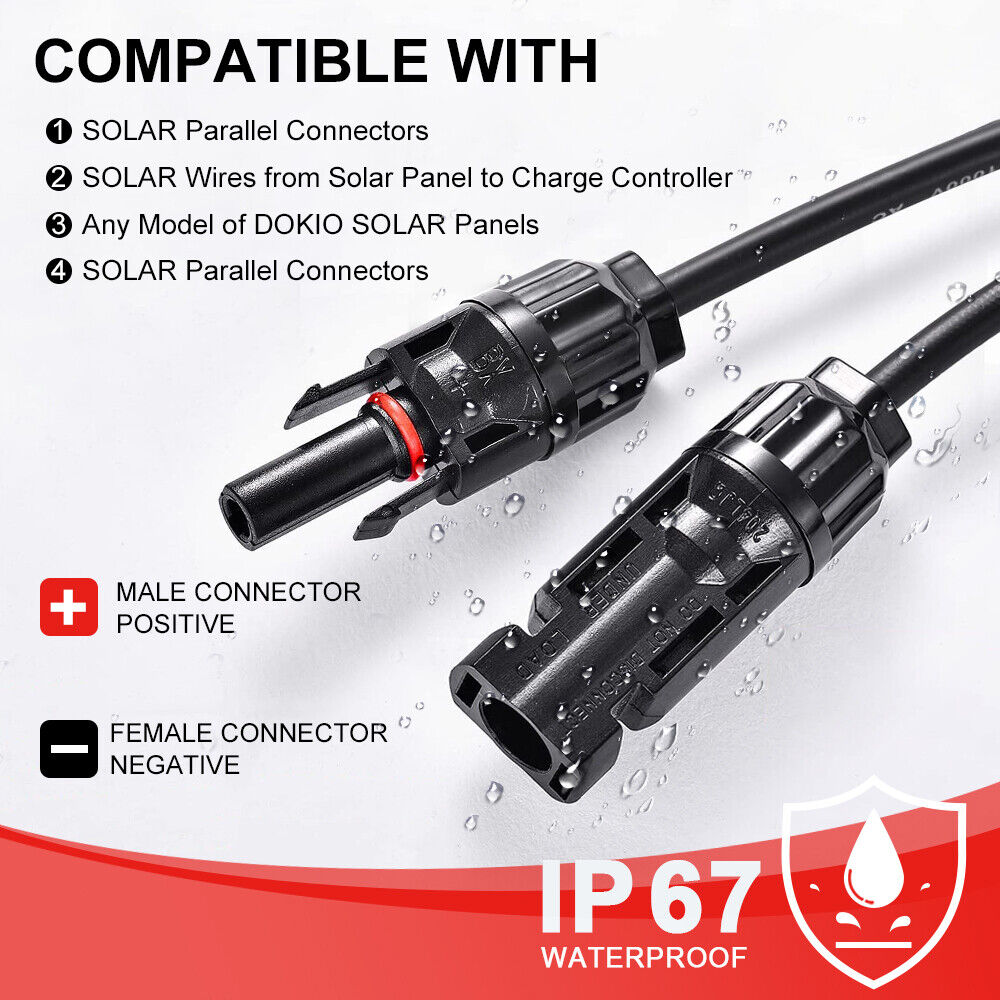

Most 200W–300W power stations can accept this panel directly using MC4 to XT60/Anderson adapters.
Is it compatible with different battery types?
Yes.
This panel can work with almost all common battery chemistries as long as you use the correct solar charge controller:
Compatible battery types:
12V/24V Lead-acid (Flooded / AGM / Gel)
12V/24V LiFePO₄ (Lithium Iron Phosphate)
12V/24V Lithium-ion (with proper controller profile)
Portable power stations (Jackery, EcoFlow, Bluetti, Anker, etc.)
The panel is universal; the controller determines the charging profile.
Can I use it with a 24V battery system?
Yes, but one panel is not enough.
A single panel (Vmp 18V) cannot charge a 24V battery.
For a 24V system, you need:
Two panels in series (Vmp ≈ 36V)
A 24V-compatible MPPT charge controller
This will safely charge a 24V lead-acid or LiFePO₄ battery.
Is this 200W solar panel compatible with 12V systems?
Yes.
This panel is designed as a “12V nominal” solar panel with a Vmp of 18V, which is perfect for charging 12V batteries and 12V power stations through a solar charge controller.
Is it easy to mount?
Yes, this solar panel easy to install. The product is designed for simple mounting, and it comes with pre-drilled holes on the back of the panel to facilitate fast mounting and securing.
How efficient is it in converting sunlight to energy?
This solar panel is designed for high efficiency. It has a maximum power output of 200 Watts and is made of monocrystalline silicon, which is known for its high efficiency in converting sunlight to energy.
