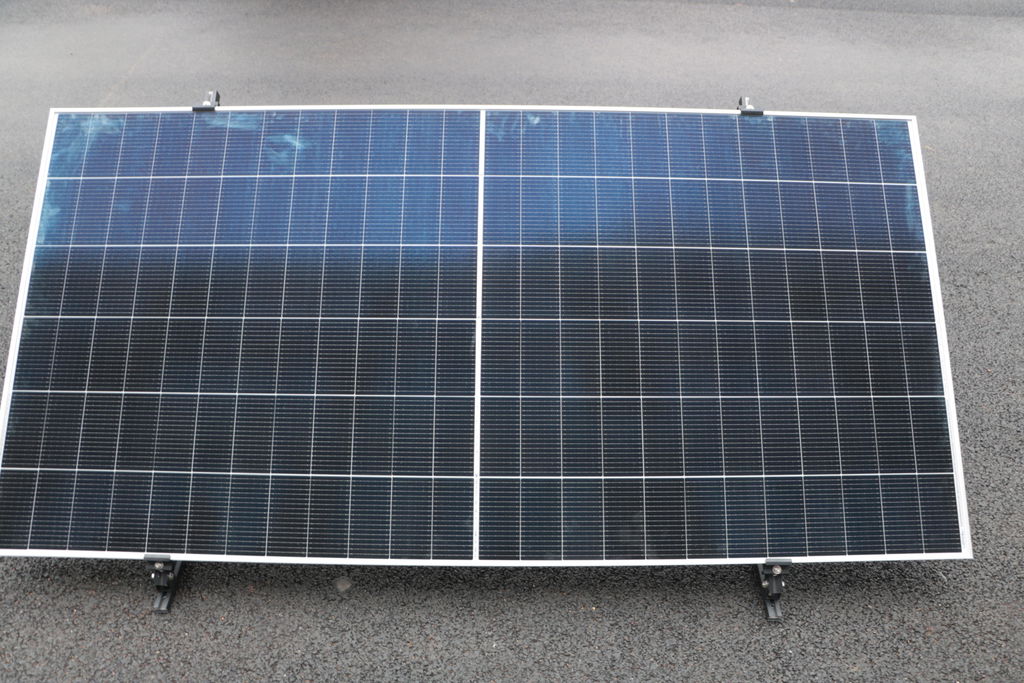

DOKIO 600W N-Type Bifacial Rigid Solar Panel

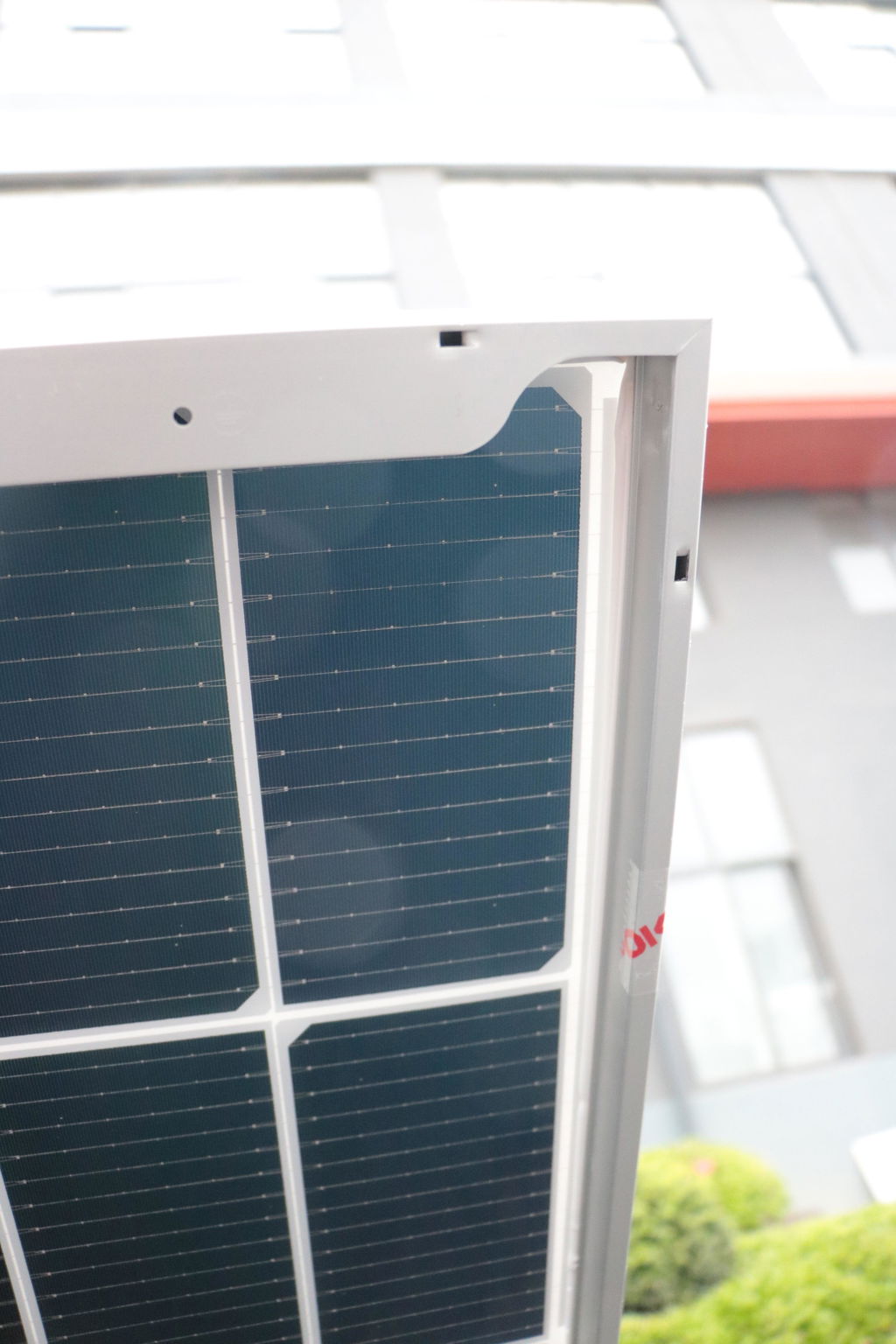

Bifacial Module Generate power from Both sides
Regulärer Preis
$439.00
Verkaufspreis
$439.00
Regulärer Preis
$539.00
Einzelpreis
Sparen Sie 19%
- 600W ± 3% rated output (Pmax)
- 45.72V Vmp | 53.73V Voc
- 89.68 × 44.64 × 1.18 in (per module)
- 16BB N-type solar cells
- 25% N-Type monocrystalline cells
- IP67 waterproof junction box
- Corrosion-resistant aluminum frame
- 25-year power output warranty
-
Estimated Delivery:Jun 06 - Jun 10
-
Local Warehouse - Free Shipping
DOKIO 600W N-Type Bifacial Rigid Solar Panel
Description
Specification
Support
Multiple Usage Scenarios
Electrical Specifications
| Maximum Power (Pmax) | 600W |
|---|---|
| Power Tolerance | ±3% |
| Voltage at Pmax (Vmp) | 45.72V |
| Current at Pmax (Imp) | 13.18A |
| Open Circuit Voltage (Voc) | 53.73V |
| Short Circuit Current (Isc) | 14.01A |
| Cell Type | 16BB N-Type Monocrystalline |
| Cell Efficiency | 25% |
| Maximum System Voltage | DC1000V |
| Maximum Series Fuse | 15A |
Operating Conditions
| Operating Temperature | -45°C to +80°C |
|---|---|
| NOCT | 45°C ±2°C |
| Standard Test Conditions (STC) | AM 1.5 / 1000W/m² / 25°C |
Electrical values are measured under Standard Test Conditions (STC): irradiance 1000W/m², AM 1.5, cell temperature 25°C.
Construction & Protection
| Front Surface | Tempered Glass |
|---|---|
| Frame | Aluminum |
| Junction Box Rating | IP67 |
| Mounting | Pre-drilled holes for fixed installations |
Connection & Integration
| Connector Type | MC4 (standard) |
|---|---|
| Output Cable Length | 0.3m factory-installed leads |
| Cable Marking | TÜV SÜD • IEC 62930 • EN 50618 (PV cable) |
| Field Wiring Requirement | Minimum No.12 AWG copper wire, 90°C insulation minimum |
| Array Wiring | Panels ship individually; series/parallel wiring is user-configured |
| Compatibility | 12V/24V battery systems & power stations (controller required, not included) |
Note: This product includes solar panels only. Series/parallel configuration depends on system design and controller specifications.
Dimensions
| Size (per module) | 89.68 × 44.64 × 1.18 in (2278 × 1134 × 30 mm) |
|---|---|
| Weight (per module) | 70.54 lb (32 kg) |

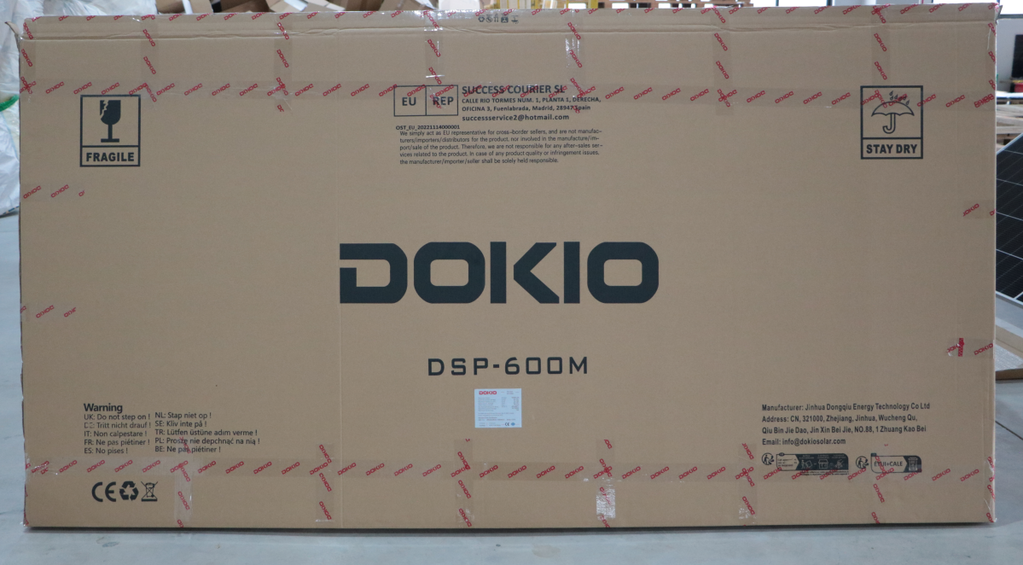

Package Contents
| 600W — 1 Panel | 1 × 600W rigid solar panel |
|---|---|
| 1200W — 2 Panels | 2 × 600W rigid solar panels |
| 1800W — 3 Panels | 3 × 600W rigid solar panels |
| 2400W — 4 Panels | 4 × 600W rigid solar panels |
| 3000W — 5 Panels | 5 × 600W rigid solar panels |
Wiring accessories (branch connectors, extension cables) and charge controller are not included unless explicitly stated in the product options.
Warranty, shipping, returns & customer support for DOKIO solar panels and accessories.
Product Warranty
Warranty Coverage
Applies to products purchased directly from the official DOKIO website (dokiopv.com).
Covers defects in materials and workmanship under normal use.
Covers defects in materials and workmanship under normal use.
Warranty Time
10-Year Product Warranty
25-Year Power Output Warranty
25-Year Power Output Warranty
Warranty Solutions
Repair / Replacement / Prorated refund (as applicable).
Not Covered
Improper installation, misuse, or modifications
Cosmetic damage, normal wear and tear
Damage caused by accidents, shipping mishandling, or external factors
Accessories and consumable parts (unless otherwise stated)
Cosmetic damage, normal wear and tear
Damage caused by accidents, shipping mishandling, or external factors
Accessories and consumable parts (unless otherwise stated)
Unauthorized / Second-hand Purchases
Warranty service is not supported for products purchased from unauthorized sellers,
second-hand marketplaces, or non-official sales channels.
Original Purchaser
Warranty applies only to the original purchaser and is non-transferable.
Shipping & Delivery
Local Warehouses: United States, Germany, United Kingdom
Processing Time: Ships within 48 hours (business days)
Delivery Time: 2–5 business days depending on location
Tracking: Tracking number provided via email once shipped
Note: Please ensure your shipping address is correct. Report damaged packages within 7 days of delivery.
Returns & Refunds
Return Window: 30 days from delivery date
Condition: Item must be unused and in original packaging
Return Shipping: Prepaid return label provided (eligible cases)
Refund Processing: 7–14 business days after inspection
Contact Us
Need assistance or technical support?
Email us at support@dokiopv.com
Response Time: Within 24 business hours
Frequently Asked Questions (FAQ)
What can a 600W solar panel system power?
A 600W solar panel system is ideal for RVs, cabins, boats, sheds, off-grid systems, and emergency backup power.
Under full sunlight, a 600W setup can generate substantial solar energy to charge 12V or 24V battery systems and support devices such as lights, fans, routers, laptops, TVs, mini fridges, CPAP machines, water pumps, and portable power stations through a battery and inverter system.
Actual power output depends on sunlight conditions, installation angle, temperature, and overall system configuration.
Can I connect multiple 600W solar panel systems together?
Yes. Multiple 600W solar panel systems can be connected together to expand your solar power capacity.
For example:
• 2 systems = 1200W solar array
• 4 systems = 2400W off-grid solar setup
• 8 systems = 4800W solar power system
When expanding your setup, make sure your charge controller, inverter, wiring, and battery bank are compatible with the combined voltage and current.
What batteries are compatible with this 600W solar panel system?
This 600W solar panel system works with most common deep-cycle battery types when paired with a suitable solar charge controller.
Compatible battery types include:
• LiFePO4 batteries
• AGM batteries
• GEL batteries
• Flooded lead-acid batteries
For best charging performance and efficiency, we recommend using an MPPT charge controller matched to your battery voltage and battery capacity.
Is this 600W solar panel system easy to install?
Yes. The panels feature durable aluminum frames with pre-drilled mounting holes for convenient installation.
They are compatible with common solar mounting accessories including:
• Z brackets
• RV roof mounts
• Adjustable tilt mounts
• Ground mounting systems
Suitable for RVs, rooftops, cabins, farms, trailers, marine applications, and off-grid installations.
Can the panels withstand harsh weather conditions?
Yes. The panels are designed for long-term outdoor use in demanding environments.
They feature tempered solar glass, corrosion-resistant aluminum frames, and IP67-rated waterproof junction boxes to help withstand rain, snow, humidity, and strong wind conditions.
This makes them suitable for rooftop systems, RV travel, marine environments, and off-grid applications.
Will this work with EcoFlow, Bluetti, or Jackery power stations?
Yes. The system can work with many portable power stations including EcoFlow, Bluetti, Jackery, and similar solar generators.
Before connecting:
• Check your power station’s maximum solar input voltage and current
• Confirm connector compatibility
• Use the proper adapter cable if required
Because a 600W system can produce higher voltage and current, compatibility should always be verified before use.
